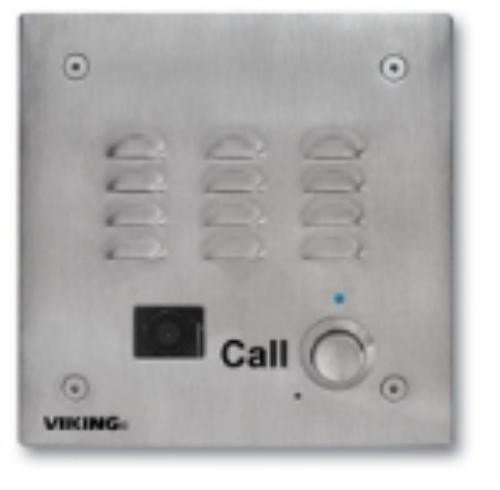

Viking Electronics E-35-IP-EWP Video Door Phone Sub Station (E35IPEWP)

(No reviews yet) Write a Review
SKU:
18124787
MPN:
e-35-ip-ewp
Availability:
Out of stock
Stock Update:
02/04/2025 09:05:56 AM PST

Out of stock

Stock Update:
02/04/2025 09:05:56 AM PST
Frequently bought together:

Description

This item is brand-new, factory sealed.

  • Built-In high resolution analog NTSC color video camera with wide viewing angle, tilt / swivel adjustments and wide operating temperature
  • 2 Amp relay contacts for door / gate or SL-2 Strobe Light (DOD 242) control
  • Blue Call Connected LED indicator
  • SIP compliant (see Product Manual for list of compatible IP-PBX phone systems)
  • PoE powered (class 1, <4 Watts)
  • Automatic Noise Canceling (ANC) feature for proper operation in noisy environments
  • VoIP audio detection eliminates the need for Push to Talk mode
  • Handsfree operation
  • T-10 Torx security screws for added security
  • Laser etched graphics
  • Programmable to dial up to 5 numbers
  • Cycles through backup phone numbers on busy or ring-no-answer
  • Hangs up on busy signal, time-out or touch tone command
  • Programming software included
  • Network downloadable firmware
  • Remotely programmable
  • Diagnostics for testing mic, speaker, and relay
  • Flush mounts using the included rough-in box or surface mount using a Viking VE-5X5 Surface Mount Box (DOD 424)
  • Extended temperature range: -40F to 140F (-40C to 60C)
  • Enhanced Weather Protection (EWP), EWP products are designed to meet IP66 Ingress Protection Rating, see DOD 859

    Package Contents:
    • E-35-IP-EWP Video Door Phone Sub Station
    • Rough-in Box

    Features

    Package Contents:
    • E-35-IP-EWP Video Door Phone Sub Station
    • Rough-in Box



    Certifications & Standards:
    • EWP
    • IP66
    • CE
    • Canada ICES
    • SIP



    Additional Information:
    • PowerPoE class 1 (<4 Watts)
    • Camera Power120VAC / 12VDC 500mA UL listed adapter provided or 6-22VDC 150mA
    • Maximum Sound Pressure: 90dB SPL @ 1m
    • Plastic Electrical Box: 4" x 4" x 2.12" (102mm x 102mm x 54mm)
    • Shipping Weight: 2.1 lbs (1.0 kg)
    • Operating Temperature: -40°F to 140°F (-40°C to 60°C)
    • Humidity: Up to 100%
    • SPDT Relay Contact Rating: 2A @ 30VDC / 1A @ 125VAC, 250VAC maximum
    • Audio Codecs: G711u, G711a, G722
    • Video Output: 1VP-P composite, NTSC, 75 Ohms
    • Lens: 2.1mm, conical pinhole
    • Tilt / Swivel Adjustment: Vertical +/- 20°, horizontal +/- 30°
    • Connections: (1) RJ45 10/100 Base-T, (6) gel-filled butt connectors (3M Scotchlok UR2)



    Application/Usage:

    Door Entry
    Outdoor
    Parking Lot
    Parking Ramp
    Automated Teller Machine (ATM)
    Medical Center
    Lobby
    Entryways
    Gate Entrance
    Stadium
    Convention Center
    Public Access Area



    Compatibility:

    Viking Electronics SIP VoIP Phone Systems




    Specs

    Physical Characteristics
    Product MaterialStainless Steel
    DurabilityWeather Resistant
    Height5"
    Width5"
    Depth2.3"
    General Information
    Brand NameViking Electronics
    Manufacturer Website Addresshttp://www.vikingelectronics.com
    Marketing InformationThe E-35-IP-EWP VoIP Entry Phone is designed to provide quick and reliable handsfree communication for SIP VoIP phone systems with PoE and has a color video camera. The E-35-IP-EWP VoIP Entry Phone can be programmed from any touch tone phone, a PC on the same LAN, or remotely using a static IP address. The entry phone can dial up to 5 programmable numbers. On-board 2 Amp relay contacts are provided for activating doorstrikes or gate controllers. An optional RC-4A Secure Relay Controller can also be used. The E-35-IP-EWP Entry Phone will flash the "Call" LED during dialing and automatically light the LED when the call is answered. All programming parameters, including phone numbers, are stored in non-volatile memory, requiring no batteries. The unit is PoE powered.
    Product TypeVideo Door Phone Sub Station
    Product NameE-35-IP-EWP Video Door Phone Sub Station
    ManufacturerViking Electronics, Inc
    Manufacturer Part NumberE-35-IP-EWP
    Product ModelE-35-IP-EWP
    Camera
    Diagonal Viewing Angle100&deg;
    Vertical Viewing Angle60&deg;
    Minimum Illumination0 lux
    Image Sensor TypeCMOS
    Horizontal Viewing Angle80&deg;
