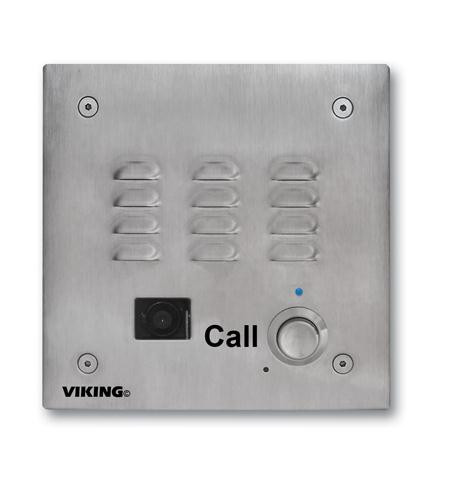

Viking Electronics E-32-IP-EWP Intercom Sub Station

(No reviews yet) Write a Review
SKU:
18248067
MPN:
e-32-ip-ewp
Availability:
Usually ships the same or next business day. In stock at our TX warehouse.
Shipping:
Calculated at Checkout
Stock Update:
08/25/2026 09:43:11 PM PST
  • Main
  • Original
$446.88
Stock Update:
08/25/2026 09:43:11 PM PST
Frequently bought together:

Description

This item is brand-new, factory sealed.

  • 2 Amp relay contacts for door / gate or SL-2 Strobe Light (DOD 242) control
  • Blue Call Connected LED indicator
  • SIP compliant (see Product Manual for list of compatible IP-PBX phone systems)
  • PoE powered (class 1, <4 Watts)
  • Automatic Noise Canceling (ANC) feature for proper operation in noisy environments
  • VoIP audio detection eliminates the need for Push to Talk mode
  • Handsfree operation
  • T-10 Torx security screws for added security
  • Laser etched graphics
  • Programmable to dial up to 5 numbers
  • Cycles through backup phone numbers on busy or ring-no-answer
  • Hangs up on busy signal, time-out or touch tone command
  • Programming software included
  • Network downloadable firmware
  • Remotely programmable
  • Diagnostics for testing mic, speaker, and relay
  • Flush mounts with a double gang electrical box
  • Extended temperature range: -40F to 140F (-40C to 60C)
  • Enhanced Weather Protection (EWP), EWP products are designed to meet IP66 Ingress Protection Rating, see DOD 859
  • Power: PoE class 1 (<4 Watts)
  • Maximum Sound Pressure: 90dB SPL @ 1m
  • Dimensions: 5.0? x 5.0? x 2.25? (127mm x 127mm x 57mm)
  • Shipping Weight: 2.1 lbs (1.0 kg)
  • Operating Temperature: -40F to 140F (-40C to 60C)
  • Humidity: Up to 100%
  • Material: 14 gauge 316 stainless steel with #4 brushed finish
  • SPDT Relay Contact Rating: 2A @ 30VDC / 1A @ 125VAC, 250VAC maximum
  • Audio Codecs: G711u, G711a, G722
  • Network Compliance: IEEE 802.3 af PoE, SIP 2.0 RFC3261, 100BASE-TX with auto cross over
  • Connections: (1) RJ45 10/100 Base-T, (3) gel-filled butt connectors
  • Emergency Style:Yes

  • Enhanced Weather Protection:Yes

  • Intercoms:Yes

  • Intercoms w/Speakers:Yes

  • Number of Zones:null

  • Watts:null

  • Color:Silver

    • Features

    Certifications & Standards:
    IP66



    Application/Usage:

    Door Entry
    Lobby
    Entryway
    Stadium
    Convention Center
    Parking Lot
    Automated Teller Machine (ATM)
    Medical Center



    Specs

    Power Description
    Power SourcePoE
    Physical Characteristics
    Product MaterialStainless Steel
    Form FactorFlush Mount
    Height5"
    Width5"
    Depth2.5"
    Warranty
    Limited Warranty2 Year
    General Information
    Brand NameViking Electronics
    Manufacturer Website Addresshttp://www.vikingelectronics.com
    Marketing InformationVoIP Entry Phone Mounts in a Standard Double Gang Box with Enhanced Weather Protection
    The E-10/20/30/32-IP VoIP Entry Phones are designed to provide quick and reliable handsfree communication for SIP VoIP phone systems with PoE. The E-10/20/30/32-IP entry phones can be programmed from any Touch Tone phone or PC on the same LAN. The Entry phones can dial up to 5 programmable numbers.
    The E-30/32-IP entry phones will flash the "Call" LED during dialing and automatically light the LED when the call is answered. All programming parameters, including phone numbers and location numbers, are stored in non-volatile memory, requiring no batteries. All units are PoE powered.
    For outdoor installations where the unit is exposed to precipitation or condensation, the E-10/20/30/32-IP Entry phones are available with Enhanced Weather Protection (EWP). EWP products feature foam rubber gaskets and boots, sealed connections, gel-filled butt connectors, as well as urethane or thermal plastic potted circuit boards.
    Product TypeIntercom Sub Station
    Product NameE-32-IP-EWP Intercom Sub Station
    ManufacturerViking Electronics, Inc
    Manufacturer Part NumberE-32-IP-EWP
    Product ModelE-32-IP-EWP
    Network & Communication
    Connectivity TechnologyCable
    Technical Information
    Features
    • Enhanced Weather Protection
    • Automatic Noise Canceling
    • Self Diagnostic Report
    • Remotely Programmable
