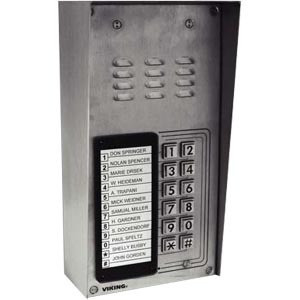

Viking Electronics K-1200-EWP Intercom Sub Station

This item is brand-new, factory sealed.

The K-1200 Entry Phone is a two way hands free telephone with 12 buttons for calling individual residences in an apartment building. The rugged stainless steel faceplate has a printed directory housed in a water proof plastic lens. Each button is beside the tenants name in the directory so there are no confusing codes to deal with. Calling a particular tenant is as easy as pressing a single button. The K-1200 has a built in speed dialer that can handle up to 12 primary phone numbers each with 32 digits. If there is no answer at the first number a second number can be called automatically. Once the tenant answers their phone a single touch tone command can activate the door strike relay. For no-CO applications the K-1200 is compatible with the C-3000 No CO Controller. For outdoor applications the K-1200 is available with Enhanced Weather Protection. EWP products feature rubber gaskets and boots closed cell foam gasketing hand soldered silicon sealed connections anti-corrosive gel filled butt connectors as well as urethane encapsulated circuit boards with internally sealed trim POTS and DIP switches. Shown in optional VE-5x10-SS surface mount box (not included). Applications Small apartment buildings Professional buildings Gated communities Features Operates on 12 to 24 volts AC/DC 12 speed dial buttons (each up to 32 digits) 12 second number positions (each with 32 digits) One button operation (no call button) Hang-up on CPC busy silence time-out or dial tone return Touch Tone restriction from microphone Integral relay for camera control or door strike Works with C-1000B for increased security Works with C-3000 for No CO operation Optional Enhanced Weather Protection (EWP) VE-LIGHT compatible Specifications Power: 12 to 24 Volts AC or DC 12VDC adapter provided Dimensions: 127mm x 254mm x 63.5mm (5in. x 10in. x 2.5in. ) Shipping weight: kg ( lbs.) Operating Temp: -35 C to 66 C (-30 F to 150 F) Relay Contact Rating: 5A @ 30VDC/250VAC Maximum Connections: (8) gel-filled butt connectors (3M Scotchlok UR2)
