Viking

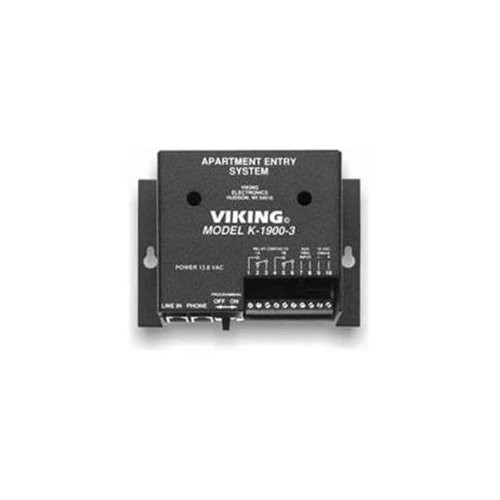

Viking Provide Door Entry/Keyless Entry for up to 250 Apartments or Offices (K19003)
- SKU:
- 18248090
- MPN:
- k-1900-3
- Availability:
- Usually ships the same or next business day. In stock at our OH warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 04/25/2024 05:20:30 PM PST
- Stock Update:
- 04/25/2024 05:20:30 PM PST
Description
This item is brand-new, factory sealed.
The K-1900-3 converts any touch tone phone into a multi-number auto dialer that will store up to 250 telephone numbers in non-volatile E2 memory. Use with Viking's K-1700-3 or K-1900-8 phones to provide vandal resistant handsfree or handset communication.When a call initiated by the K-1900-3 is answered by an apartment or business tenant, a built-in contact closure may be activated to control an electric gate or door strike. Up to 250 keyless entry codes may also be programmed, providing tenants with keyless entry.
In addition, a master keyless entry code and up to five maintenance codes can be programmed. Calling activity and keyless entry use can be monitored using the log bus data output. The K-1900-3 can be programmed locally or remotely using a standard Touch Tone phone. The K-1900-3 has built-in user dialing restriction to help prevent unauthorized calls and toll fraud.
Features
Additional Information:
Applications
Features
Viking - K-1700-3, K-1900-8
United States
Applications
- Complete apartment entry system when used with:
- K-1700-3 or K-1900-8
- D-Series directories - Multi-tenant, gated communities
- Office parks and multi-business complexes
- Kiosks, ATMs, catalog sales, and interactive point of sale displays
- Reservation phones for hotels, airlines, car rentals, etc.
Features
- Compatible with Viking's vandal resistant K-1700-3, K-1900-8 or any Touch Tone phone
- Non-volatile E2 memory (no batteries required)
- Remotely or locally programmable
- Stores 250 tenant Touch Tone phone numbers and keyless entry codes
- Programmable tenant's relay activation code
- Programmable master keyless entry code and five maintenance codes
- Programmable call timer
- Multi-number dialer mode (for Kiosks, etc.)
- Ring-thru mode for calling the entry phone
- Normally open and normally closed (DPDT) relay contacts for controlling door strikes, magnetic locks, gates, etc.
- Auxiliary relay input to trigger a timed relay activation for postal locks, etc.
- Touch tone and pulse dialing toll restriction
- Programmable allow/restrict for 911 and 311 outside calls
- Log bus data output for logging entry events
- Power: 120V AC/13.8V AC 1.25A, UL listed adapter provided
- Dimensions: 89mm x 46mm x 132mm (3.5" x 1.8" x 5.2")
- Environmental: 0° C to 32° C (32° F to 90° F) with 5% to 95% non-condensing humidity
- Talk Battery Output: 32V DC nominal
- Door Strike Power Output: 18V DC / 200mA maximum
- Connections: (2) RJ11 jacks, 10 pin screw terminal block
- DTMF dialing speed: 120ms on/100ms off
- Relay contact ratings: 5 Amps @ 30V DC/250V AC
Compatibility:
Viking - K-1700-3, K-1900-8
Country of Origin:
United States
Specs
Warranty | |
Limited Warranty | 1 Year |
General Information | |
Brand Name | Viking |
Manufacturer Website Address | http://www.vikinginterworks.com |
Marketing Information | The K-1900-3 converts any touch tone phone into a multi-number auto dialer that will store up to 250 telephone numbers in non-volatile E2 memory. Use with Viking's K-1700-3 or K-1900-8 phones to provide vandal resistant handsfree or handset communication. When a call initiated by the K-1900-3 is answered by an apartment or business tenant, a built-in contact closure may be activated to control an electric gate or door strike. Up to 250 keyless entry codes may also be programmed, providing tenants with keyless entry. In addition, a master keyless entry code and up to five maintenance codes can be programmed. Calling activity and keyless entry use can be monitored using the log bus data output. The K-1900-3 can be programmed locally or remotely using a standard Touch Tone phone. The K-1900-3 has built-in user dialing restriction to help prevent unauthorized calls and toll fraud. |
Product Type | Door Entry Dialer |
Product Name | Provide Door Entry/Keyless Entry for up to 250 Apartments or Offices |
Manufacturer | Viking Interworks |
Manufacturer Part Number | K-1900-3 |
Product Model | K-1900-3 |
Warranty Information
All Items are Brand New, Factory Sealed and come with a standard warranty. [Read our policies]
View AllClose
Viking Provide Door Entry/Keyless Entry for up to 250 Apartments or Offices (K19003)
$234.98
