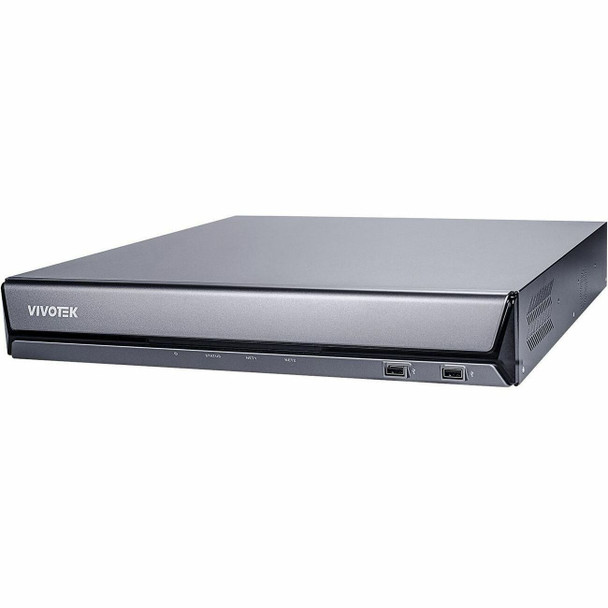

Vivotek Core+ AI 16-Channel NVR with Embedded PoE ND9442P

This item is brand-new, factory sealed.

ND9442P

Core+ AI H.265 16-CH Embedded PoE NVR

Smart VCA Camera Supported for Event Search

802.3at/af PoE with PoE Management

RAID 0, 1, 5 Supported to Prevent Recording Loss

Cyber Protection via Trend Micro IoT Security

Manage with VORTEX and VAST Security Station

Benefits

Next Generation NVR Firmware: Core+AI

Core+ AI firmware take Core+ up a level. Core+ AI NVR's are empowered with Deep Search, utilizing AI to provide the fastest, smartest and most efficient evidence search user experience. VIVOTEK cameras enabled with Vision Object Analytics provide the metadata used by Deep Search's AI. Deep Search is comprised of two main functions: Attribute Search and Scene Search.

Deep Search

Attribute Search uses people and vehicles as search criteria utilizing multiple attributes (e.g., gender, age group, clothing or car color, vehicle type, etc.) to quickly and accurately find the person / vehicle of interest.

Smart VCA Event Search

ND9442P supports alarm management and event search of VIVOTEK's deep-learning video analytics technology, Smart VCA. Users can search by single or multiple event types, playback triggered events and then export these search results to video clips.

*Requires Smart VCA enabled camerasTechnical Specifications
Descriptions
16-CH Embedded PoE NVRDevice
OS
Embedded Linux
Watchdog
Hardware + Software
Power Restoration
System Restart Automatically after Power RecoveryDisplay
LiveView Display
16 Channels
Multi Layout Display:
1x1, 2x2, 3x3, 1P+3,2P+3,1M+5, 1P+6, 3V,1M+12, 4x4
Video Output
HDMI x1, VGA x1
Display Resolution
3840x2160, 1920x1080, 1280x720
Dual Monitor
Supported
Stream Application
ConstantAuto Adaptive Stream
Fisheye Dewarp
Local: 1O, 1P, 1R, 1O3R, 1O8R, 1P3R
Web: 1O, 1R, 1P
PTZ Operation
Direction Control, Home, Iris, Preset, Patrol (Group)Video
Video Format
MJPEG, H.264, H.265
Graphic Decoder
Hardware decoding
Decoding Resolution
Up to 7680x2560
Decoding Capability
H.265/H.264:
3840x2160 at 90 fps
1920x1080 at 360 fpsAudio
Audio Format
G.711, G.726, MPEG-2 AAC-LCRecord
Recording Time (sec.)
Pre-Record: 5 (Max. 10)
Post-Record: 20 (Max. 300)
Recording Stream
Dual
Recording Throughput
192 Mbps
Recording Mode
Continuous, Schedule, Manual, Event, Activity Adaptive Streaming
Recording Setting
Recycle (unit: Day)
Watermark
Supported
Seamless Recording
SupportedStorage and Backup
DISK Devices
Internal x4 (3.5")
(HDD is purchased by separately)
HDD Max. Capacity
Please refer to HDD supported list on VIVOTEK website
RAID
RAID 0, 1, 5
Disk Management
Create, Format and Remove Disk
HDD S.M.A.R.T
External Storage
USB Storage (USB 3.0)
Video Clip Export
USB pen drive (FAT Format)
Schedule Backup
FTPPlayback
Playback Display
4 Channels
Multi Layout Display: 1x1,2x2,1P+3,3V
Playback Control
Regular (Play, Pause, Stop), Rewind, Next / Previous Frame, Speed Control, Calendar, Event, Timeline, Timeline Scale, Thumbnail (Storyboard)
Video Search
By Calendar, Date/Time, and Alarm
Thumbnail Explorer (Storyboard)
Listing the thumbnail of recorded video (Max. 2 CH)
Snapshot
JPEG
Video Clip Export
EXENetwork
Ethernet
10/100/1000Mbps Ethernet (RJ-45) x 2
Network Throughput in total
224 Mbps
PoE
802.3at/af Compliant PoE Ports x 16
(Total Max. 200W)
DO NOT suggest connecting any non-PD device with this NVR PoE port in order to avoid potential risk.
PoE Management
Supported
Protocols
IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, SMTP, FTP, DHCP, NTP, DNS, DDNSExternal Interface
USB
Front: 2 (USB 2.0)
Back: 1 (USB 3.0)
Alarm In
16
Alarm Out
8
Audio In
3.5 Phone Jack Audio Input x1 (HW available, FW feature not supported yet)
Audio Out
3.5 Phone Jack Audio Output x1
RS485
1 ( (HW available, FW feature not supported yet)System
Camera Integration
ONVIF Profile S
Event
Motion Detection, Smart VCA Event, Cyber Attack, PIR Detection, Tampering Detection, Camera DI/DO, Camera Disconnected, Disk Failure, Disk Full, NVR DI/DO, PoE error, Video loss
Event Action
Record, Email (Text), Email (Snapshot), FTP, Buzzer, ePTZ Control (Go to Preset), NVR DO, Camera DO, APP Notification by cloud service
User Management
User level: administrator, regular user
Log
System, Recording, User, Error
Date and Time
Time Zone, Manual, Automatic Sync NTP, Daylight Saving Time
Language
Czech, English, French, German, Italian, Japanese, Korean, Portuguese, Polish, Russian, Spanish, Simplified Chinese, Traditional Chinese, ArabicDeep Search
Object search
People, Vehicle
Scene search
Line crossing, Intrusion, Loitering
Attribute search
People: Gender, Age, Clothing Color, Accessories
Vehicles: Type, ColorAdvance Features
VCA Counting Solution
Supported
VCA Event Search
Smart VCA, Smart 360 VCA
Smart Search II
Supported
Trend Micro IoT Security
Supported (3-year free trial)
Cybersecurity Management
SupportedRemote Client
Software AP
Shepherd , VSS
Mobile/Tablet App
iViewer(Android and iOS)
Web Browser
Chrome
Cloud service
VORTEX ConnectGeneral
Power Input
100-240V AC, 50/60Hz
Power Consumption
Max. 300 W
Operating Temperature
-10^oC - 55^oC (14^oF - 131^oF)
Humidity
0 - 95%
Safety Certifications
CE, LVD, FCC, VCCI, C-Tick, UL, CB, BSMI, BISItem Dimension (L"xW"xH")
23 x 22 x 8

Weight
30 lbs

Warranty Information
3-Year
