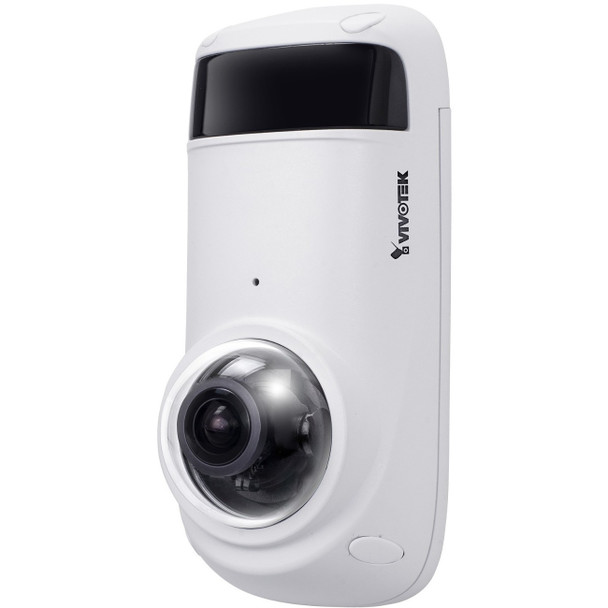

Vivotek CC9381-HV 5 Megapixel Outdoor Network Camera - Color - Fisheye

This item is brand-new, factory sealed.

High-Quality Surveillance

Along with offering amazing 180 HFOV coverage, CC9381-HV offers up to 20 fps at 5-Megapixel resolution (30 fps at 5MP with WDR Off). This Panoramic Network Camera also incorporates other value-added features. In order to combat high contrast lighting environments, WDR Pro is included and also has built-in 15M panoramic IR illuminators, ensuring 24/7 surveillance coverage.



180 Clear Night Views

The CC9381-HV also has built-in 180 IR illuminators up to 15 meters. No matter day or night, light or dark, it always provides complete video security.



Maximize Video Quality with Ultra-Low Bandwidth

Combining both H.265 and VIVOTEK Smart Stream III, the CC9381-HV can reduce bandwidth and storage consumption more than 90%* compared to traditional H.264 without smart streaming.

* depending on sceneSystem Information
Model
CC9381-HV
CPU
Multimedia SoC (System-on-Chip)
Flash
256 MB
RAM
512 MBCamera Features
Image Sensor
1/2.7" Progressive CMOS
Max. Resolution
2560x1920 (5MP)
Lens Type
Fixed-focal
Focal Length
f 1.45 mm
Aperture
F2.2
Iris Type
Fixed iris
Field of View
180 (Horizontal)
120 (Vertical)
180 (Diagonal)
Shutter Time
1/5 sec. to 1/32,000 sec.
WDR Technology
WDR Pro
Day/Night
Yes
Removable IR-cut Filter
Yes
IR Illuminators
Built-in IR illuminators, effective up to 15 meters with Smart IR, IR LEDx4
Minimum Illumination
0.11 lux at F2.2 (Color)
0.01 lux at F2.2 (B/W)
0 lux with IR Illuminators on
Tilt Range
+/-25^o
Pan/Tilt/Zoom Functionalities
ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
Storage
Seamless Recording to MicroSD/SDHC/SDXC card and recording to network-attached storage (NAS)Video
Video Compression
H.265, H.264, MJPEG
Maximum Frame Rate
H.265: 20 fps/30 fps at 2560x1920 (WDR Pro on/off)
H.264: 20 fps/25 fps at 2560x1920 (WDR Pro on/off)
MJPEG: 20 fps/20 fps at 2560x1920 (WDR Pro on/off)
Maximum Streams
3 video streams (Up to 8 configurable profiles)
S/N Ratio
62 dB
Dynamic Range
120 dB
Video Streaming
Adjustable resolution, quality and bit rate control, Smart Stream III
Image Settings
General settings: video title and time stamp overlay, video orientation (flip, mirror), day/night settings
Illuminators: illuminators, anti-overexposure
Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR, HLM, DIS, scene mode (auto, deblur)
Exposure: BLC, HLC, exposure control (exposure level, iris adjustment, exposure time, gain control, iris mode), AE speed adjustment, WDR
Privacy mask
Scheduled profile settingsAudio
Audio Capability
One-way Audio
Audio Compression
G.711, G.726
Audio Interface
Built-in microphone
Effective Range
5 metersNetwork
Users
Live viewing for up to 10 clients
Security
Access list, digest authentication, HTTPS, IEEE 802.1x, password protection, signed firmware, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management
Protocols
802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP
Interface
10 Base-T/100 Base-TX Ethernet (RJ-45)
It is highly recommended to use standard CAT5e and CAT6 cables which are compliant with the 3P/ETL standard.
ONVIF
Profile G, S, T supported, specification available at www.onvif.orgSolution Integration
Video Motion Detection
Five-window video motion detection
VADP Package
Trend Micro IoT Security (1-year free trial), VIVOCloudAlarm and Event
Event Trigger
Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, shock detection, system boot
Event Action
Event notification via email, HTTP, FTP, NAS server, SD card
File upload via email, HTTP, FTP, NAS server, SD cardGeneral
Connectors
RJ-45 cable connector for 10/100Mpbs Network/PoE connection
LED Indicator
System power and status indicator
Power Input
IEEE 802.3af PoE Class 0
Power Consumption
Max. 9.12 W/5.37 W (IR on/off)
Certifications
EMC: CE (EN55032 Class B, EN55024), FCC (FCC Part 15 Subpart B Class B), RCM (AS/NZS CISPR 32 Class B), VCCI (VCCI-CISPR 32 Class B) Safety: UL (UL62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471) Environment: IK10 (IEC 62262), IP66 (IEC 60529) IA: BIS (IS 13252)
Operating Temperature
Starting Temperature: -10^oC to 50^oC (14^oF to 122^oF) Working Temperature: -30^oC to 50^oC (-22^oF to 122^oF)
Humidity
90%System Requirements
Operating System
Microsoft Windows 10/8/7
Mac 10.12 (Chrome only)
Web Browser
Chrome 58.0 or above
Internet Explorer 10/11
Other Players
VLC: 1.1.11 or aboveIncluded Accessories
Packing Contents
Quick installation guide, mounting bracket, tilt bracket, screw packItem Dimension (L inchxW inchxH inch)
9 x 7 x 4

Weight
2 lbs

Warranty Information
2-year
