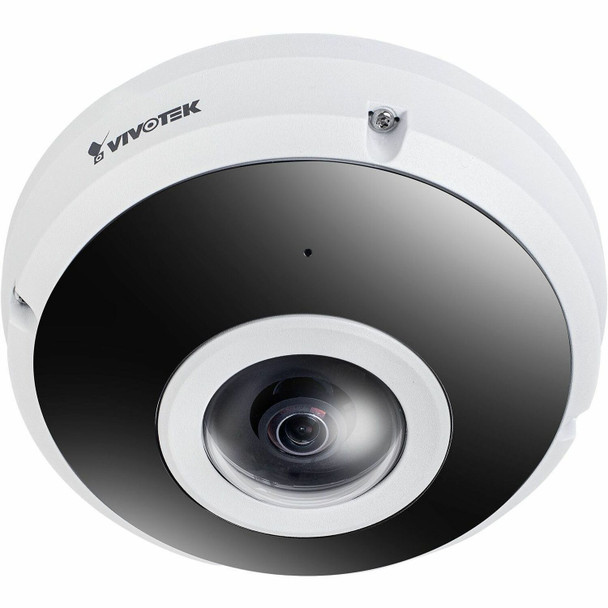

Vivotek FE9391-EHV-v2 12 Megapixel Outdoor Network Camera - Color - Fisheye - Black

This item is brand-new, factory sealed.

FE9391-EHV-V2
12MP Fisheye Panoramic AI Camera
WDR Pro for Unparalleled Visibility
Smart Motion Detection to Reduce False Alarms
Smart VCA and Vision Object Analytics
Cyber Protection via Trend Micro IoT Security
Local Dewarp
Benefits
-fast Search Speed
Deep Search fully utilizes the data captured by Vision Object Analytics to bring precise and immediate search results. Experience the power of Deep Search in VIVOTEKs network video recording, VAST Security Station, and VORTEX VSaaS.System Information
CPU
Multimedia SoC (System-on-Chip)
Flash
8 GB
RAM
2 GBCamera Specifications
Image Sensor
1/2.3" Progressive CMOS in 4056x3040
Max. Resolution
2944x2944
Lens Type
Fixed-focal
Focal Length
f equal 1.22mm
Aperture
F2.0
Iris Type
Fixed iris
Field of View
180^o (Horizontal)
180^o (Vertical)
180^o (Diagonal)
Shutter Time
1/5 sec. to 1/32,000 sec.
WDR Technology
WDR Pro
Day/Night
Yes
Removable IR-cut filter
Yes
Illuminators
Built-in IR illuminators, effective up to 20 meters (50IRE) with Smart IR II, IR LEDx4
Minimum Illumination
0.1 lux at F2.0 (Color)
<0.005 lux at F2.0 (B/W)
0 lux with IR illumination on
Pan/Tilt/Zoom Functionalities
ePTZ: 12x digital zoom (12x on IE plug-in)
Storage
Seamless Recording to MicroSD/SDHC/SDXC card (1TB capacity supported) and recording to network-attached storage (NAS)
Built-in Installation Aids
Pixel calculatorVideo
Compression
H.265, H.264, MJPEG
Maximum Frame Rate
30fps at 2944x2944 (WDR off)
20fps at 2944x2944 (WDR on)
Maximum Streams
3 video streams (up to 8 configurable profiles)
S/N Ratio
56.9 dB
Dynamic Range
120 dB
Video Streaming
Adjustable resolution, quality and constant bit rate control, Smart Stream III
Image Settings
General settings
video title and time stamp overlay, video orientation (flip, mirror), day/night settings
anti-overexposure
Image settings
white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR
Exposure
BLC, exposure control, AE speed adjustment, WDR
Privacy mask
Scheduled profile settings
Pixel calculator
Display Mode
Client Dewarping
Ceiling mounted: 1O Fisheye, 1P Panoramic, 2P Two Panoramics, 1R One Region, 4R Four Regions, 1O3R One Fisheye Three Regions, 1O8R One Fisheye Eight Regions
Wall mounted: 1O Fisheye, 1P Panoramic, 1R One Region, 4R Four Regions, 1P2R One Panoramic Two Regions, 1P3R One Panoramic Three Regions, 1O3R, One Fisheye Three Regions
Local Dewarping
Ceiling mounted: 1O Fisheye, 1P Panoramic, 2P Two Panoramics, 1R One Region, 4R Four Regions
Wall mounted: 1O Fisheye, 1P Panoramic, 1R One Region, 4R Four RegionsAudio
Audio Capability
Two-way Audio (full duplex)
Compression
G.711, G.726, MPEG-2 AAC-LC
Interface
Built-in microphone
External microphone input
External line output
Requires optional cable
Effective Range
5 metersNetwork
Users
Live viewing for up to 10 clients
Security
Access list, Account block , Audit log, Configurable password strength protection, CSRF protection, Digest authentication, HTTPS , IEEE 802.1x, Secure boot, Session timeout, Signed firmware, Trend Micro IoT Security (Brute force attack event, Cyberattack event, Quarantine event), User access log, User account management
Protocols
802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP
Interface
10 Base-T/100 Base-TX Ethernet (RJ-45)
It is highly recommended to use standard CAT5e and CAT6 cables which are compliant with the 3P/ETL standard.
ONVIF
Profile G, S, T supported, specification available at www.onvif.orgAI Analytics
Compute Capability
SoC with built-in hardware deep learning accelerator
Vision Object Analytics
Object Detection
people, vehicle (4-wheeled, 2-wheeled)
Attribute Extraction
people (gender, color, bag, hat), vehicle (bike, bus, car, motorcycle, truck, color)
Re-Search Extraction
Path Extraction
Application
Deep Learning VCA (Smart Motion Detection, Smart VCA)
Smart Motion Detection (Five-window video motion detection, People detection, Vehicle detection, Time filter), Smart VCA (Intrusion detection, Loitering detection, Line crossing detection, Unattended object detection, Missing object detection, Face detection, Crowd detection
Application available with license
Running detection, Parking Violation Detection, Restricted Zone Detection
Support for more analytic applications and free trial, please visit vivotek.com/video-analytics
AI-powered Image Enhancement
Smart IR IIISolution Integration
VADP Package
Stratocast, Trend Micro IoT Security (3-year free trial)Alarm and Event
Event Trigger
Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), digital input, manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, shock detection, system boot
Event Action
Event notification via audio clip, digital output, email, HTTP, FTP, NAS server, SD card
File upload via email, HTTP, FTP, NAS server, SD card, Camera linkGeneral
Connectors
RJ-45 cable connector for 10/100 Mbps PoE network connection
Audio input
Audio output
DC 12V power input
Digital input
Digital ouput (DO+: 12V, 50mA DO-: 30V, Open Drain, 1A)
Requires optional cable
LED Indicator
System power and status indicator
Power Input
IEEE 802.3at PoE Class 4
Power Consumption
Max. 22.5 W/9.55 W (IR on/off)
Certifications
EMC
CE (EN 55032 Class A, EN 55024), FCC (FCC Part 15 Subpart B Class A), VCCI (VCCI-CISPR 32 Class A)
Safety
UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22)
Environment
IK10 (IEC 62262), IP66 (IEC 60529), NEMA (NEMA 250 Type 4X)
IA
BIS (IS 13252)
IK10 (Metal Housing)
Operating Temperature
Starting Temperature:
-20^oC - 50^oC (-4^oF - 122^oF)
Working Temperature:
-40^oC - 55^oC (-40^oF - 131^oF) (IR off)
-40^oC - 50^oC (-40^oF - 122^oF) (IR on)
Humidity
90% RH (non-condensing)System Requirements
Operating System
Microsoft Windows 10/8/7
Mac 10.12 (Chrome only)
Web Browser
Chrome 58.0 or above
Internet Explorer 11
Other Players
VLC: 1.1.11 or aboveIncluded Accessories
Packing Contents
Quick installation guide, alignment sticker, screw pack, desiccant bagDORI (EN 62676-4 Standard)
Detection (25PPM/ 8PPF)
31.5 m (103.3 ft)
Observation (63PPM/ 19PPF)
12.5 m (41 ft)
Recognition (125PPM/ 38PPF)
6.3 m (20.7 ft)
Identification (250PPM/ 76PPF)
3.1 m (10.2 ft)Item Dimension (L"xW"xH")
10 x 8 x 5

Weight
3 lbs

Warranty Information
3-Year
