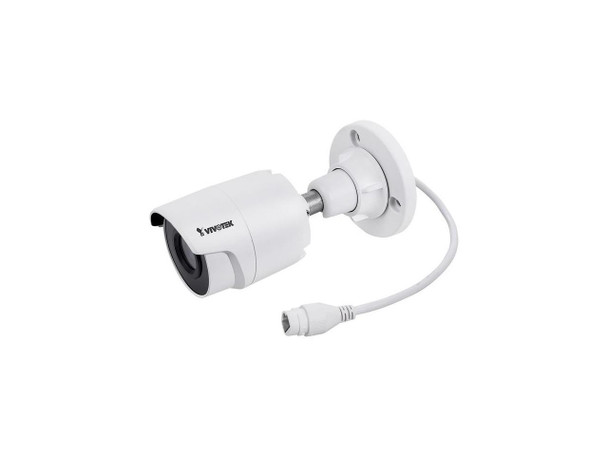

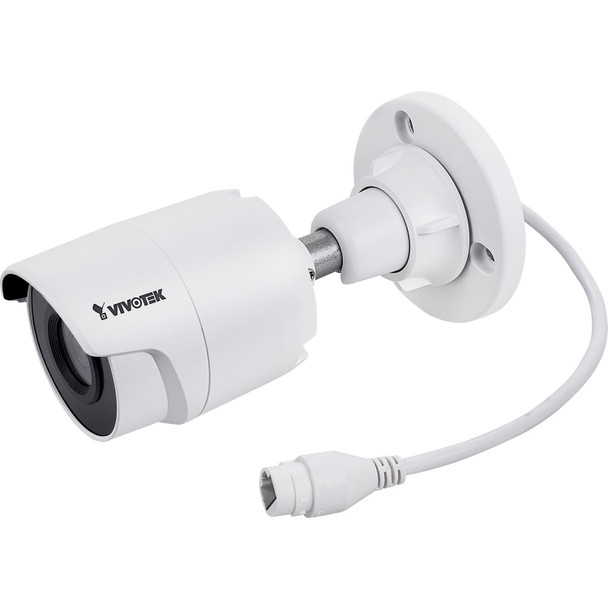

Vivotek IB9380-H 5 Megapixel Outdoor HD Network Camera - Bullet - TAA Compliant

This item is brand-new, factory sealed.

VIVOTEKs IB9380-H is a H.265 outdoor bullet network camera equipped with a 5-Megapixel sensor, enabling resolution of 2560x1920 at 20 fps. Featuring VIVOTEK SNV and WDR Pro technology, the IB9380-H is capable of capturing high-quality imagery in both high contrast and low light environments.



The IB9380-H deploys a 3.6mm lens and is equipped with IR illuminators with a 30-meter effective range for better night visibility. Further, to provide reliable coverage in harsh outdoor environments, the IB9380-H is encased in IP66 and IK10 housing.



By employing VIVOTEK's Smart Stream III technology and H.265 codec support, the IB9380-H is able to reduce bandwidth usage by up to 90%* while maintaining supreme image quality. Additionally, the VADP (VIVOTEK Application Development Platform) allows users to customize applications for the ever-expanding number of user scenarios in a diversifying surveillance market.

* Depending on scenesSystem Information
Model
IB9380-H
CPU
Multimedia SoC (System-on-Chip)
Flash
128 MB
RAM
512 MBCamera Features
Image Sensor
1/2.7" Progressive CMOS
Max. Resolution
2560x1920 (5MP)
Lens Type
Fixed-focal
Focal Length
f equals 3.6 mm
Aperture
F2.0
Iris Type
Fixed iris
Field of View
76^o (Horizontal)
59^o (Vertical)
100^o (Diagonal)
Shutter Time
1/5 sec. to 1/32,000 sec.
WDR Technology
WDR Pro
Day/Night
Yes
Removable IR-cut Filter
Yes
IR Illuminators
Built-in IR illuminators, effective up to 30 meters with Smart IR, IR LEDx2
Minimum Illumination
0.03 lux at F2.0 (Color)
<0.005 lux at F2.0 (B/W)
0 lux with IR illumination on
Tilt Range
90^o
Rotation Range
180^o
Pan/Tilt/Zoom Functionalities
ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
Storage
Seamless Recording to MicroSD/SDHC/SDXC card and recording to network-attached storage (NAS)Video
Video Compression
H.265, H.264, MJPEG
Maximum Frame Rate
20 fps at 2560x1920
Maximum Streams
3 video streams (Up to 8 configurable profiles)
S/N Ratio
67 dB
Dynamic Range
120 dB
Video Streaming
Adjustable resolution, quality and bit rate control, Smart Stream III
Image Settings
General settings: video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings
Illuminators: illuminators, anti-overexposure
Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR
Exposure: BLC, HLC, exposure control (exposure level, exposure time, gain control), AE speed adjustment, WDR
Privacy mask
Scheduled profile settingsNetwork
Users
Live viewing for up to 10 clients
Security
Access list, digest authentication, HTTPS, IEEE 802.1x, password protection, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management
Protocols
802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP
Interface
10 Base-T/100 Base-TX Ethernet (RJ-45)
(It is highly recommended to use standard CAT5e and CAT6 cables which are compliant with the 3P/ETL standard.)
ONVIF
Profile G, S, T supported, specification available at www.onvif.orgSolution Integration
Video Motion Detection
Five-window video motion detection
VADP Package
Stratocast, Trend Micro IoT Security (1-year free trial), VIVOCloudAlarm and Event
Event Trigger
Camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, system boot
Event Action
Event notification via email, HTTP, FTP, NAS server, SD card, push notification
File upload via email, HTTP, FTP, NAS server, SD cardGeneral
Connectors
RJ-45 cable connector for 10/100Mbps Network/PoE connection
Power Input
IEEE 802.3af PoE Class 2
Power Consumption
Max. 6.49 W/3.6 W (IR on/off)
Certifications
EMC: CE (EN 55032 Class B, EN 55024), FCC (FCC Part 15 Subpart B Class B), RCM (AS/NZS CISPR 32 Class B), VCCI (VCCI-CISPR 32 Class B)
Safety: UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471)
Environment: IK10 (IEC 62262), IP66 (IEC 60529)
IA: BIS (IS 13252)
Operating Temperature
Starting Temperature: -10^oC to 60^oC (14^oF to 140^oF)
Working Temperature: -30^oC to 60^oC (-22^oF to 140^oF)
Humidity
90%System Requirements
Operating System
Microsoft Windows 10/8/7
Mac 10.12 (Chrome only)
Web Browser
Chrome 58.0 or above
Internet Explorer 10/11
Other Players
VLC: 1.1.11 or aboveIncluded Accessories
Packing Contents
Quick installation guide, alignment sticker, screw pack, cable glandItem Dimension (L inchxW inchxH inch)
10 x 6 x 6

Weight
3 lbs

Warranty Information
2 Years
