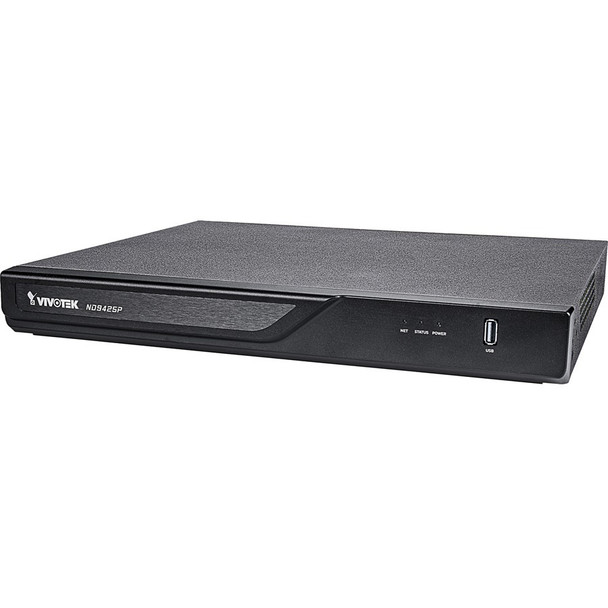

Vivotek H.265 16-CH Embedded PoE NVR ND9425P

This item is brand-new, factory sealed.

ND9425P

H.265 16-CH Embedded PoE NVR



VIVOTEKs ND9425P is a H.265 Linux-based standalone NVR that supports up to 4K IP camera video decoding and local 4K video display. With advanced H.265 compression technology, users are able to experience Full HD quality video while expending less HDD capacity than H.264.



The NVR features embedded 16x 802.3 at/af PoE ports to provide users easy and convenient IP camera installation, and also supports remote and mobile access via VIVOCloud and iViewer apps for both iOS and Android devices. The VIVOCloud app provides instant push notification and direct video playback functions when triggered by an alarm notification and provides users a flexible and intelligent NVR for seamless use in small to medium sized video surveillance applications.




Highlight Feature

New Web UI Available for Plug-in Free Browser

Actively adopting current trends and simultaneously protecting your cybersecurity, VIVOTEK's new web UI supports Chrome browsers without the need for web plugins. It lets users login and operate with ease, and solves issues related to system administrator authority, safety risks, browser, and OS updates. Furthermore, it now supports H.265 technology meaning that users can attain higher and more efficient image compression rates than previous H.264 systems while maintaining high image quality.



Smart VCA Event Search

The NVR supports alarm management and event search of VIVOTEK's deep-learning video analytics technology, Smart VCA. The user can search by single or multiple event types, playback triggered events and then export these search results to video clips.



PoE Management

Allow users to quickly troubleshoot problems and monitor power use for better operation. When overloaded, some PoE ports will auto power-off until system power is falls below the threshold for system protection.Device
Model
ND9425P
OS
Embedded Linux
Watchdog
Hardware + Software
Power Restoration
System Restart Automatically after Power RecoveryDisplay
LiveView Display
16 Channels
Multi-Layout Display: 1x1, 2x2, 3x3,4X4, 1M+5,1M+7, 1M+12, 1P+3, 1P+6, 2P+3, 2V+3, 1V+6, 3V
Video Output
HDMI x1, VGA x1
Display Resolution
3840x2160, 1920x1080, 1280x720
Stream Application
ConstantAuto Stream
Fisheye Dewarp
Local: 1O, 1R, 1O3R, 1O8R
Web: 1O, 1R, 1P
PTZ Operation
Direction Control, Home, Iris, Preset, Patrol (Group), PiP ControlVideo
Video Format
H.265, H.264, MJPEG
Graphic Decoder
Hardware decoding
Decoding Resolution
Up to 3840x2160
Decoding Capability
3840x2160 at 30 fps (1-CH)
1920x1080 at 120 fps (4-CH)
1280x720 at 240 fps (8-CH)
720x480 at 480 fps (16-CH)Audio
Audio Format
G.711, G.726
Audio In/Out
3.5 Phone jack audio output x1
3.5 Phone jack audio input (reserved) x1Record
Recording Time (sec.)
Pre-Record: 5 (Max. 10)
Post-Record: 20 (Max. 300)
Recording Stream
Single
Recording Throughput
64 Mbps
Recording Mode
Continuous, Schedule, Manual, Event
Recording Setting
Recycle (unit: Day)
Watermark
SupportedStorage and Backup
HDD Devices
Internal x2 (3.5")
(HDD is purchased by separately.)
HDD Max. Capacity
Please refer to recommended HDD list on the VIVOTEK website.
RAID
RAID 0, 1
Disk Management
Create, Format and Remove Disk
HDD S.M.A.R.T.
External Storage
USB Storage (USB 3.0)
Video Clip Export
USB Dongle (FAT Format)
Schedule Backup
FTPPlayback
Playback Display
4 Channels
Multi-Layout Display: 1x1, 2x2, 1P+3, 1V+3
Playback Control
Regular (play, pause, stop), rewind, next/previous frame, speed control, calendar, event, timeline, timeline scale, thumbnail (storyboard)
Video Search
By calendar, date/time, and alarm
Thumbnail Explorer (Storyboard)
Listing the thumbnail of recorded video (Max. 2-CH)
Snapshot
JPEG
Video Clip Export
EXENetwork
Ethernet
10/100/1000Mbps Ethernet (RJ-45) x1
Network Throughput Input/Output Total
88 Mbps
PoE
802.3at/af compliant PoE ports x 16 (Total Max. 200 W)
(DO NOT suggest connecting any non-PD device with this NVR PoE port in order to avoid potential risk.)
PoE Management
Supported
Protocols
IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, SMTP, FTP, DHCP, NTP, DNS, DDNS, IP FilterExternal Interface
USB
Front: 1 (USB 3.0)
Back: 1 (USB 2.0)
Alarm In
4
Alarm Out
1
Audio In/ Out
3.5 Phone Jack Audio Output x1
3.5 Phone Jack Audio Input (Reserved) x1System
Camera Integration
ONVIF Profile S
Event
Motion Detection, Smart VCA Event, PIR Detection, Tampering Detection, Camera DI/DO, Camera Disconnected, Disk Failure, Disk Full, NVR DI/DO, PoE error
Event Action
Video recording, email with snapshot, buzzer, PTZ, FTP, DO (camera, system), full screen, send to CMS, VIVOCloud APP Notification
User Management
User level: administrator, regular user
Log
System, recording, user, error
Date and Time
Time Zone, Manual, Automatic Sync NTP, Daylight Saving Time
Language
Czech, English, French, German, Italian, Japanese, Korean, Portuguese, Polish, Russian, Spanish, Simplified Chinese, Traditional Chinese, ArabicAdvanced Features
VCA Counting Solution
Supported
VCA Event Search
Supported
Trend Micro IoT Security
Supported
Cybersecurity Management
Supported
Crowd Control Solution
SupportedRemote Client
Software AP
Shepherd, VAST 2
Mobile/Tablet App
iViewer (Android and iOS)
Web Browser
Internet Explorer 10 (32 bit) or later/ Windows
Chrome v68.0.3 or later/ Windows for new web
VIVOCloud
SupportedGeneral
Power Input
100-240V AC, 50/60Hz
Power Consumption
Max. 255 W
Operating Temperature
0^oC - 40^oC (32^oF - 104^oF)
Humidity
0 - 95%
Safety Certifications
CE, FCC, VCCI, C-Tick, UL, CB, BSMI, BISItem Dimension (L inchxW inchxH inch)
20 x 15 x 5

Weight
11 lbs

Warranty Information
2-Year
