Platinum Tools ezEX 48 Shielded, External Ground, CAT6 Connector (202052j)
(No reviews yet)
Write a Review
- SKU:
- 21627835
- MPN:
- 202052j
- Availability:
- Usually ships the same or next business day. In stock at our MS warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 07/23/2026 11:42:47 PM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 2 or above | and pay only $120.00 each 120 |
- Stock Update:
- 07/23/2026 11:42:47 PM PST
Frequently bought together:
Description
This item is brand-new, factory sealed.

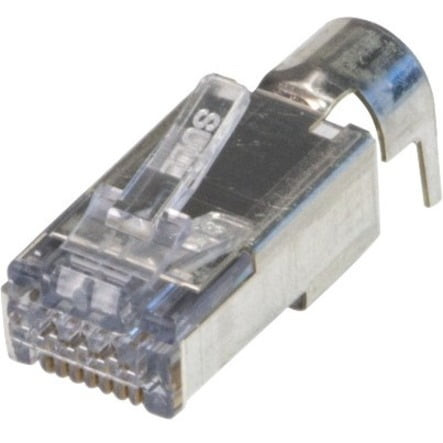

Platinum Tools ezEX-RJ45 shielded connectors with external ground feature a Hi-Lo stagger to isolate each connector. A simple to use one-piece design. For use with Cat6a cable. These connectors allow the conductors to pass through the front of the connector and must be used in conjunction with crimp tool 100061C. This product comes in a plastic tub and contains 50 pieces. This product is RoHS2 and UL compliant Details Hi-Lo stagger to isolate each conductor Simple one piece/pass through design, no bars or liners Shielded 6/6A compliant Insulation Diameter (Conductor) - Size range: 0.043 0.048 (1.09 1.22mm) Max Outer Diameter: 0.305 (7.75mm) Solid or Stranded 23-22 AWG 50 micron gold plated contacts TAA, TIA, RoHS, UL & FCC compliant Made in the USAPlatinum Tools PLAT-202052J ezEX48 10G RJ45 Shielded Connector with External Ground for Conductor OD Range, 0.043-0.048 in. - Pack of 50
Features
TAA Compliant:
Yes
Yes
Platinum Tools:
Restriction of Hazardous Substances (RoHS)
United States
Yes
Environmentally Friendly:
Yes
Compatibility:
Platinum Tools:
- EXO Crimp Frame + EXO-EX Die: P/N 100061C
- EXO Crimp Frame (Frame only w/o crimp die): P/N 100060C
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Country of Origin:
United States
Specs
| General Information | |
| Brand Name | Platinum Tools |
| Manufacturer Website Address | http://www.platinumtools.com |
| Marketing Information | This shielded, patented ezEX-RJ45 connector is designed for larger cables and conductors. Features a unique integrated Hi-Lo stagger load bar and allows 'big' conductors to pass through the front end of the connector making it easy to verify the wiring sequence before terminating. This connector is typically used with Cat6A and is terminated with EXO Crimp Frame® and EXO-EX Die™ (100061C). Hi-Lo stagger to isolate each conductor Simple one piece/pass through design, no bars or liners Shielded 6/6A compliant Insulation Diameter (Conductor) - Size range: 0.043" - 0.048" (1.09 -1.22mm) Max Outer Diameter: 0.305" (7.75mm) Solid or Stranded 23-22 AWG 50 micron gold plated contacts TAA, TIA, RoHS, UL & FCC compliant Made in the USA US Patents 9,543,729 B2; 10,116,082 B2; & 10,573,990 B2. Foreign patents. |
| Packing | Jar |
| Product Type | Network Connector |
| Product Name | ezEX 48 Shielded, External Ground, CAT6 Connector |
| Manufacturer | NSI Industries |
| Manufacturer Part Number | 202052J |
| Product Line | ezEX |
| Packaged Quantity | 50 |
| Technical Information | |
| Contact Plating | Gold |
| Connector Type | RJ-45 Network - Male |
| Connector Details | 1 x RJ-45 Male Network |
| Features |
|
| Shielding | Yes |
