Wichard Marine 01214 Wichard Self-locking Long D Shackle - Diameter 8mm - 5/16"

This item is brand-new, factory sealed.

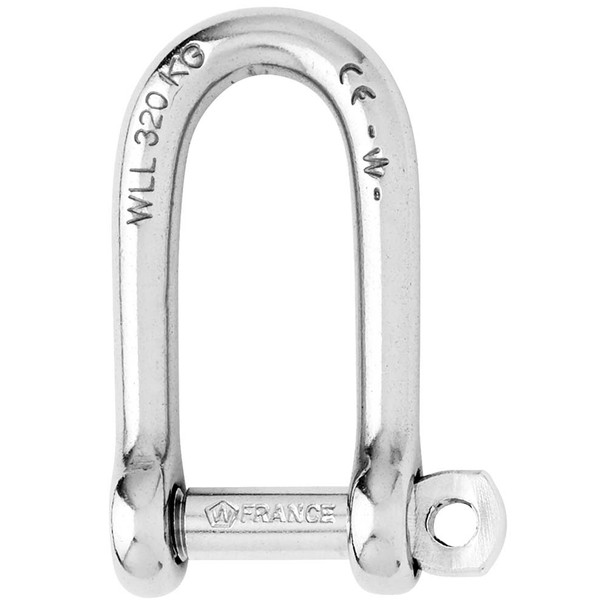

Self-Locking Long D Shackle - Diameter 8mm - 5/16"

Features:

• Self-locking long shackle forged in grade 316L stainless steel
• The pin is locked into one of the indentations
• No risks of loosening due to vibrations
• Outstanding working and breaking loads
• WLL: only for industrial applications
• CE Marking and batch number

Applications:

• Standard applications of shackle requiring more length
• Attachment applications: blocks, head…

Specifications:

• Materials 316 stainless steel grade
• Working load (lb) 2200
• WLL (lb) 1190
• Breaking load (lb) 5950
• Weight (lb) 0.146

Dimensions (see 2nd image):

• A (inch) 1-49/64"
• B (inch) 5/8"
• C (inch) 5/16"
• D (inch) 5/8"
• D diameter (inch) 5/16"
• E (inch) 9/32"
• F (inch) 2-33/64"
• G (inch) 1-39/64"
