Wichard Marine 01263 Wichard Self-locking Large Opening Shackle - 6mm Diameter - 1/4"
(No reviews yet)
Write a Review
- SKU:
- 20896712
- MPN:
- 01263
- Availability:
- Usually ships the same or next business day. In stock at our FL warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 10/13/2026 09:49:16 PM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 2 | and pay only $38.54 each 38.54 |
| Buy 3 or above | and pay only $36.90 each 36.9 |
- Stock Update:
- 10/13/2026 09:49:16 PM PST
Frequently bought together:
Description
This item is brand-new, factory sealed.

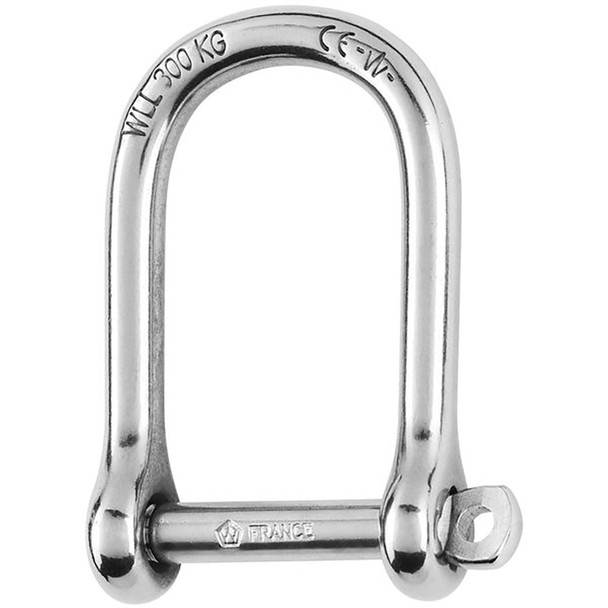

Self-Locking Large Opening Shackle - 6mm Diameter - 1/4"
Features:
- Self-locking large shackle forged in grade 316L stainless steel
- The pin is locked into one of the indentations
- No risks of loosening due to vibrations
- Outstanding working and breaking loads
- WLL: only for industrial applications (lifting i.e…)
- CE marking
Applications:
- For applications where a large opening shackle is required
Specifications:
- Materials 316 stainless steel grade
- Working load: (lb) 990 / (kg) 450
- WLL: (lb) 660 / (kg) 300
- Breaking load: (lb) 3300 / (kg) 1500
- Weight: (lb) 0.06 / (g) 27
Dimensions:
- A: (inch) 1 21/32" / (mm) 42
- B: (inch) 1 / (mm) 25.5
- C: (inch) 15/64" / (mm) 6
- D: (inch) 35/64" / (mm) 14
- D diameter: (inch) 15/64" / (mm) 6
- E: (inch) 15/64" / (mm) 6
- F: (inch) 2 9/32" / (mm) 58
- G: (inch) 1 47/64" / (mm) 44
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.
WLL = Breaking load / 5
*Sold as an Individual
