Wichard Marine 01414 Wichard Captive Pin Long D Shackle - Diameter 8mm - 5/16"
(No reviews yet)
Write a Review
- SKU:
- 18910504
- MPN:
- 01414_92
- Availability:
- Usually ships the same or next business day. In stock at our FL warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 07/23/2026 11:29:48 PM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 2 | and pay only $59.64 each 59.64 |
| Buy 3 | and pay only $58.37 each 58.37 |
| Buy 4 or above | and pay only $57.13 each 57.13 |
- Stock Update:
- 07/23/2026 11:29:48 PM PST
Frequently bought together:
Description
This item is brand-new, factory sealed.

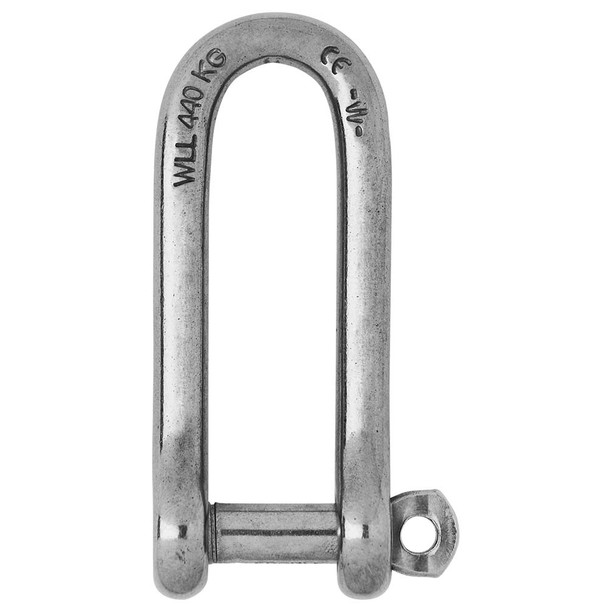

Captive Pin Long D Shackle - Diameter 8mm - 5/16"
Features:
- Captive pin long "D" shackle forged in grade 316L stainless steel
- The pin is connected to the body at all times even when opened
- The pin is locked into one of the indentations
- No risks of loosening due to vibrations
- Outstanding working and breaking loads
Applications:
- Standard applications of shackle requiring more length
- Attachment applications: blocks, head...
Specifications:
- Materials 316 stainless steel grade
- Working load (lb) 2200
- WLL (lb) 1580
- Breaking load (lb) 7930
- Weight (lb) 0.203
Dimensions (see 2nd image):
- A (inch) 2-7/16"
- B (inch) 5/8"
- C (inch) 23/64"
- D (inch) 43/64"
- D diameter (inch) 5/16"
- E (inch) 5/16"
- F (inch) 3-15/64"
- G (inch) 1-11/16"
