Wichard Marine
Wichard Marine 01442 Wichard Captive Pin Bow Shackle - Diameter 5mm - 3/16"
(No reviews yet)
Write a Review
- SKU:
- 18910576
- MPN:
- 01442_92
- Availability:
- Usually ships the same or next business day. In stock at our FL warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 07/19/2026 06:29:45 PM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 2 | and pay only $29.13 each 29.13 |
| Buy 3 or above | and pay only $27.09 each 27.09 |
- Stock Update:
- 07/19/2026 06:29:45 PM PST
Frequently bought together:
Description
This item is brand-new, factory sealed.

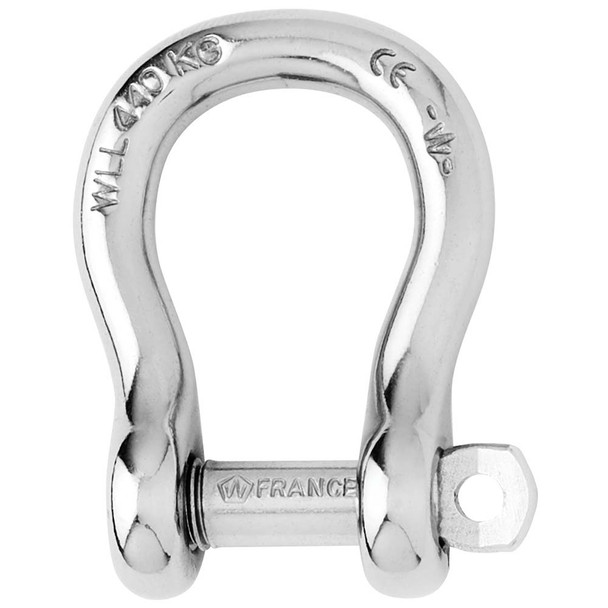

Captive Pin Bow Shackle - Diameter 5mm - 3/16"
Features:
- Captive pin bow shackle forged in grade 316L stainless steel
- The pin is connected to the body at all times even when opened
- The pin is locked into one of the indentations
- No risks of loosening due to vibrations
- Outstanding working and breaking loads
- Single handed operation for more safety
- WLL: only for industrial applications (lifting i.e…)
- CE marking and batch number
Applications:
- To be used when ample room is required
- Possibility to attach several lines or cables
Specifications:
- Materials 316 stainless steel grade
- Working load (lb) 1050
- WLL (lb) 660
- Breaking load (lb) 3300
- Weight (lb) 0.042
Dimensions (see 2nd image):
- A (inch) 29/32"
- B (inch) 25/64"
- C (inch) 15/64"
- D (inch) 7/16"
- D diameter (inch) 13/64"
- E (inch) 13/64"
- M (inch) 1-1/32"
Warranty Information
All Items are Brand New, Factory Sealed and come with a standard warranty. [Read our policies]
View AllClose
Wichard Marine 01442 Wichard Captive Pin Bow Shackle - Diameter 5mm - 3/16"
$30.74
