Wichard Marine
Wichard Marine 01495 Wichard Thimble Shackle - Captive Pin - Diameter 10mm - 13/32"
(No reviews yet)
Write a Review
- SKU:
- 18910616
- MPN:
- 01495
- Availability:
- Usually ships the same or next business day. In stock at our FL warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 07/28/2026 07:31:21 PM PST
- Stock Update:
- 07/28/2026 07:31:21 PM PST
Frequently bought together:
Description
This item is brand-new, factory sealed.

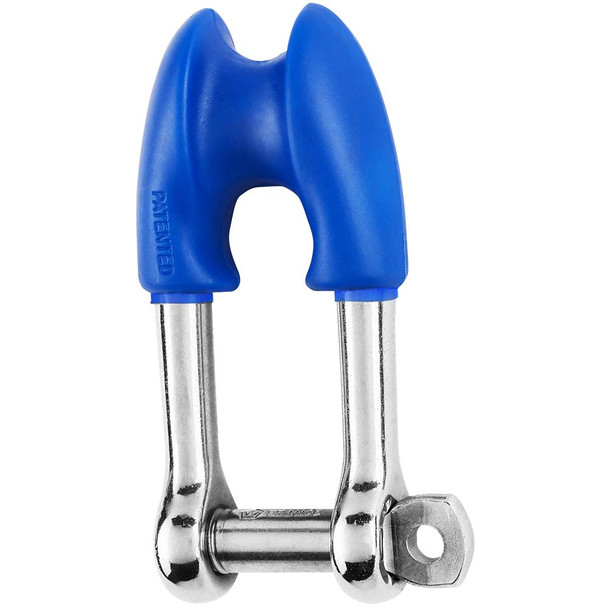

Thimble Shackle - Captive Pin - Diameter 10mm - 13/32"
Features:
- Thimble shackle with captive pin forged in grade 316L stainless steel
- Allows to spliced a rope without adding an additional thimble
- With the captive pin, no risk to lose the pin
- Outstanding working and breaking loads
Applications:
- Mainsheet halyards
- Max rope size: 16 mm
Specifications:
- Materials 316 stainless steel grade
- Working load (lb) 3350
- Breaking load (lb) 11020
- Weight (lb) 0.322
Dimensions (see 2nd image):
- A (inch) 2-1/64"
- B (inch) 25/32"
- C (inch) 25/64"
- D (inch) 25/32"
- D diameter (inch) 25/64"
- E (inch) 23/64"
- F (inch) 3-47/64"
- G (inch) 2-1/8"
Warranty Information
All Items are Brand New, Factory Sealed and come with a standard warranty. [Read our policies]
View AllClose
Wichard Marine 01495 Wichard Thimble Shackle - Captive Pin - Diameter 10mm - 13/32"
$139.14
