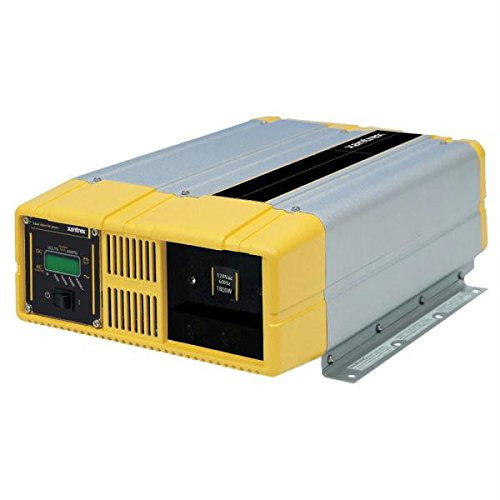

Xantrex 8061802 Prosine 1800 Inverter 180

(No reviews yet) Write a Review
SKU:
18010024
MPN:
806-1802
Availability:
Usually ships the same or next business day. In stock at our NJ warehouse.
Shipping:
Calculated at Checkout
Stock Update:
04/15/2024 07:51:28 AM PST
$1,507.19
Stock Update:
04/15/2024 07:51:28 AM PST

Description

This item is brand-new, factory sealed.

Provides 1800 watts of sine wave AC power from a DC source

Offering superior quality true sine wave output, the Prosine 1800 stand-alone inverter is ideally suited for electrical systems that already have a quality multistage battery charger. Designed for recreational and industrial applications, their 120-volt, 60 Hz AC power output is capable of handling both heavy duty and smaller, multiple AC loads. Prosine inverters include a backlit LCD display panel, which can be mounted remotely.

Product Features
  • 1800 watt inverters (2900 watt surge capability)
  • True sine wave AC output (crystal controlled)
  • Removable LCD display can be mounted remotely for control and monitoring
  • Unique DC terminals offer 180-degree connections for easy installation in tight places
  • Powersave mode draws only 1.5 watts under no load
  • Two year warranty


Protection Features
  • Over temperature shutdown and automatic overload protection
  • Over voltage and under voltage protection
  • Short circuit and AC backfeed protection


With less than 3% total harmonic distortion, Prosine 1000 and 1800 inverters deliver true sine wave output that is identical to AC power supplied by your utility. This clean output makes Prosine inverters ideal for handling sensitive loads and improves AC equipment performance. Expect trouble-free true sine wave electricity for televisions, audio systems, variable speed tools, and more.

Light and compact

Prosine inverters are lighter and more compact than other inverters with similar power ratings because they use high-frequency switching technology in the power conversion process.

WarningWARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) which is known to the State of California to cause cancer, and Di-isodecyl Phthalate (DIDP) which is known to the State of California to cause reproductive harm. For more information go to P65Warnings.ca.gov.

Features

Certifications & Standards:
  • CSA/NRTL certified to CSA 107.1
  • UL 458
  • UL 1741
  • KKK-A-1822D



Additional Information:
  • Peak efficiency: 90%
  • Surge Rating: 2900 watts
  • Transfer relay rating: 15 A
  • Output Current (Peak): 45 A
  • Recommended DC Fuse: 250 A
  • LED Display Panel (Removable): Displays DC volts, amps and output power
  • Output voltage (over full load and battery voltage range): 120 VAC RMS -10% / +4%
  • Transfer time AC to inverter and inverter to AC: Max 2 cycles (typically 1 cycle) <2.5 seconds with Powersave "ON"
  • No Load Power Draw:
  • Search Mode: < 1.5 W
  • Idle Mode: < 22 W



Specs

Power Description
Maximum Frequency60 Hz
Continuous Power Load1800 W
Input Voltage Range10 V DC - 16 V DC
Input Voltage12 V DC
Output Voltage120 V AC
Waveform TypeSine Wave
Physical Characteristics
Weight (Approximate)14.50 lb
Height4.5"
Width11"
Depth15.4"
Warranty
Limited Warranty2 Year
General Information
Brand NameXantrex
Manufacturer Website Addresshttp://www.xantrex.com
Marketing InformationOffering superior quality true sine wave output, the Prosine 1800 stand-alone inverter is ideally suited for electrical systems that already have a quality multistage battery charger. Designed for recreational and industrial applications, it's 120-volt, 60 Hz AC power output is capable of handling both heavy duty and smaller, multiple AC loads.
Product TypePower Inverter
Product NameProsine 1800 12V Power Inverter
ManufacturerXantrex Technology
Manufacturer Part Number806-1802
Technical Information
ReceptaclesHardwired
