APC

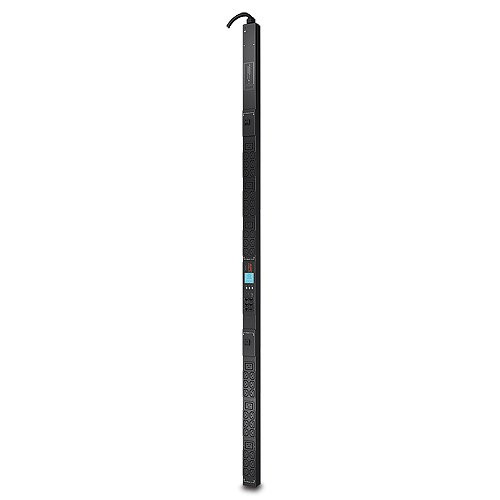

APC by Schneider Electric Metered Rack AP8853
- SKU:
- 20477148
- MPN:
- ap8853
- Availability:
- Out of stock
- Stock Update:
- 10/29/2025 10:24:31 AM PST
- Stock Update:
- 10/29/2025 10:24:31 AM PST
Description
This item is brand-new, factory sealed.
APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.
Features
Environmentally Friendly:
Yes
Specs
| Power Description | |
| Output Voltage | 230 V AC |
| Physical Characteristics | |
| Weight (Approximate) | 15.28 lb |
| Mount Type | Rack-mountable |
| Height | 70.5" |
| Width | 2.2" |
| Depth | 1.7" |
| Warranty | |
| Limited Warranty | 2 Year |
| General Information | |
| Brand Name | APC by Schneider Electric |
| Manufacturer Website Address | http://www.schneider-electric.com |

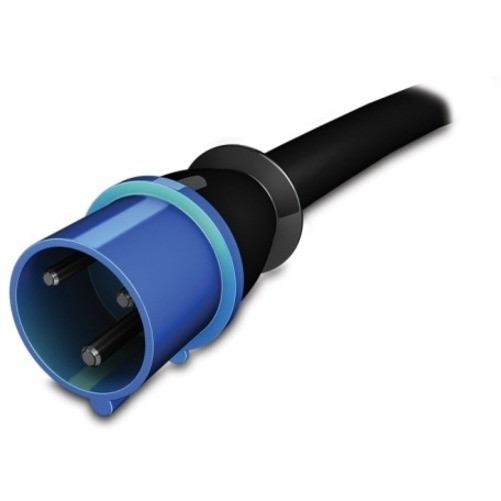

| Marketing Information | APC Metered Rack PDUs offer resilient power distribution and actively measure, display, and log volts, amps, real power (kW) & energy (kWh). This PDU offers LCD display, real-time remote monitoring and user-defined alarms to help prevent circuit overloads that can cause accidental power loss to critical equipment. Historical reporting enables users to meter customer power usage, optimize energy use as well as plan for capacity . This zeroU PDU can operate at up to 60 degrees Celsius and can be accessed, configured, and managed remotely via EcoStruxure IT, Web, SNMP and Command Line Interface. Power is supplied to the PDU at 220-240 volts via IEC 309 2P + E plug with a 3m (10 ft) cord while power comes out at 230 volts through (36) C13 and (6) C19 locking outlets. It integrates with EcoStruxure IT, and daisy-chaining is supported to monitoring up to 4 PDUs from 1 IP address as well as a local USB port for easy local firmware updates As a Green Premium product, this unit comes with a verified product environment profile, including carbon footprint, scope 3 emissions and end of life instructions. |
| Product Type | PDU |
| Product Name | Metered Rack AP8853 42-Outlets PDU |
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | AP8853 |
| Product Model | AP8853 |
| Product Series | Metered |
| Product Line | NetShelter |
| Technical Information | |
| PDU Type | Metered |
| Protection Type | Overload Protection |
| Management | |
| Management | <p><b>Protocols:</b></p><ul><li>SNMP</li><li>Telnet</li></ul> |
Warranty Information
