Asus RT-AX92U Wi-Fi 6 IEEE 802.11ax Ethernet Wireless Router (RTAX92U)

This item is brand-new, factory sealed.

AX6100 Tri-band WiFi 6 (802.11ax) Router supporting AiProtection Pro network security, AiMesh mesh wifi system, built-in wtfast for gaming, VPN setting, Adaptive QoS and DFS band


Next-Gen Wi-Fi6 Technology With OFDMA and MU-MIMO, RT-AX92U enables more efficient, stable, and faster transmission even when multiple devices are transmitting data at the same time.

Flexible Wi-Fi for connected devices RT-AX92U comes with 802.11n, ac and ax bands, which provides channels for all kinds of devices, including legacy or cutting-edge devices.

Powerful Whole-home Wi-Fi System, the Way You Want RT-AX92U supports ASUS AiMesh-a powerful, flexible whole-home mesh system technology. AiMesh gives you time-saving central control, and seamless roaming capability, users can use a mix of ASUS router models.

Commercial-grade network security for family AiProtection Pro protects all the connected devices on your home network and advanced parental controls allow you to manage the family's internet usage. Network Standard
IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax Product Segment
AX6100 ultimate AX performance : 400 Mbps+ 867 Mbps+ 4804 Mbps Coverage
Very large homes Data Rate
802.11a : 6,9,12,18,24,36,48,54 Mbps
802.11b : 1, 2, 5.5, 11 Mbps
802.11g : 6,9,12,18,24,36,48,54 Mbps
802.11n : up to 300 Mbps
802.11n 256QAM : up to 400 Mbps
802.11ac (5GHZ-1)up to 867 Mbps
802.11ac (5GHZ-2)up to 4333 Mbps
802.11ax (5GHZ-2)up to 4804 Mbps Antenna
Internal antenna x 2
External antenna x 4 Transmit/Receive
2.4 GHz 2 x 2
5 GHz-1 2 x 2
5 GHz-2 4 x 4 Memory
256 MB Flash
512 MB RAM Wi-Fi Technology
OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
20/40/80/160 MHz bandwidth Operating Frequency
2.4G Hz, 5 GHz-1, 5 GHz-2 Encryption
WPA2-PSK, WPA-PSK, WPA-Enterprise , WPA2-Enterprise , WPS support Management
UPnP, IGMP v1/v2/v3, DNS Proxy, DHCP, NTP Client, DDNS, Port Trigger, Port Forwarding, DMZ, System Event Log VPN Support
IPSec Pass-Through
PPTP Pass-Through
L2TP Pass-Through
PPTP server
OpenVPN server
PPTP client
L2TP client
OpenVPN client WAN Connection Type
Internet connection type : Automatic IP, Static IP, PPPoE(MPPE supported), PPTP, L2TP Ports

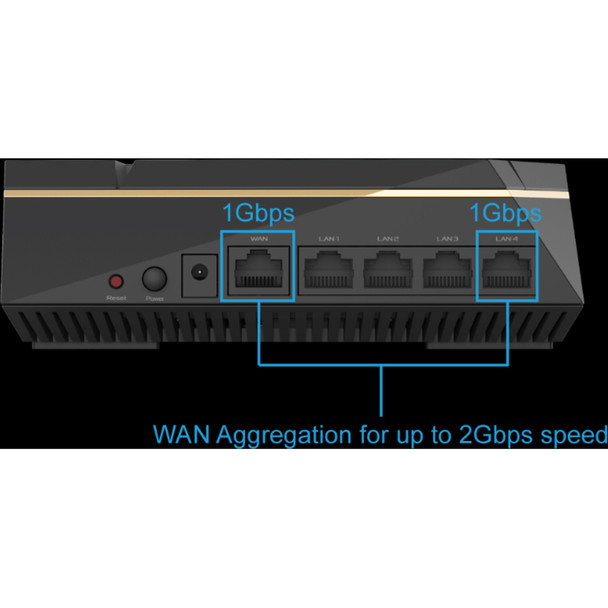

RJ45 for Gigabits BaseT for WAN x 1, RJ45 for BaseT for LAN x 4
USB 2.0 x 1
USB 3.1 Gen 1 x 1 Features
Router app
MU-MIMO
Traffic Analyzer
Adaptive QoS
WTFast Gamers Private Network
AiProtection Pro
Parental Control
Guest Network :
VPN server : IPSec Pass-Through, PPTP Pass-Through, PPTP Server, OpenVPN Server
VPN client : PPTP client, L2TP client, OpenVPN client
Enhanced media server (AiPlayer app compatible)

AiCloud personal cloud service
3G/4G data sharing
Printer Server
- Multifunctional printer support (Windows only)
- LPR protocol support
Download Master
- Support bt, nzb, http, ed2k
- Support encryption, DHT, PEX and magnet link
- Upload and download bandwidth control
- Download scheduling
AiDisk file server
- Samba and FTP server with account management
IPTV support
Roaming Assist
OFDMA Button
WPS Button, Reset Button, Power Button LED Indicator
Wi-Fi x 3
Power x 1
LAN x 1
WAN x 1 Power Supply
AC Input : 110V-240V(50-60Hz)
DC Output : 19 V with max. 1.75 A current OS Support
Windows 10 64-bit
Windows 8.1
Windows 8
Windows 7
Mac OS X 10.6
Mac OS X 10.7
Mac OS X 10.8
Linux Router Special Features
AiCloud, Printer server, Download Master, AiDisK, Multiple SSIDs, Parental Control
