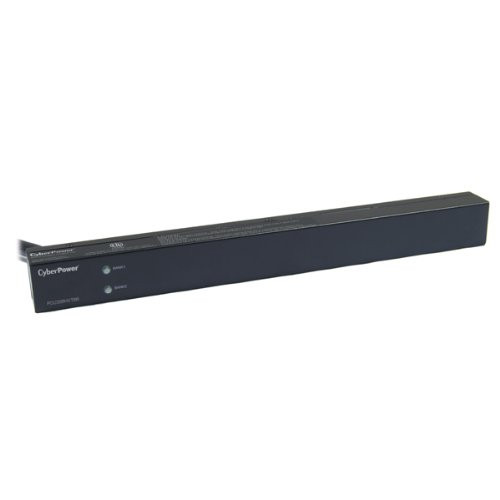

Cyberpower Basic Pdu30bhvt8r 8-outlets Pdu - 2 X Iec 60320 C19, 6 X Iec 60320 C13 - 1u Rack-mountable, Zero U Vertical Rackmount
(No reviews yet)
Write a Review
- SKU:
- 18140015
- MPN:
- pdu30bhvt8r
- Availability:
- Out of stock
- Stock Update:
- 12/15/2025 02:41:16 PM PST
- Stock Update:
- 12/15/2025 02:41:16 PM PST
Description
This item is brand-new, factory sealed.
The CyberPower Basic PDU30BHVT8R 8-Outlets PDU provides 208V/230V 30A output. It distributes power to 8 IEC receptacles from a single NEMA L6-30P twist lock plug, with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, this unit has a rugged, industrial-grade metal housing and a 10-foot AC power cord. It can be mounted either horizontally or vertically, includes a cord retention tray and is ETL/RoHS certified. A lifetime warranty ensures that this PDU is free of defects in design, assembly, material or workmanship. 8 ICE-320 (2-C19/6-C13) output receptacles. Single NEMA L6-30P twist lock plug. 30-amp electrical capacity with circuit breaker. 208/230V - 50/60Hz. 1U rack mount. Rugged, industrial-grade metal housing. 10-ft. power cord. Lifetime warranty.
Package Contents:
- Basic PDU30BHVT8R 8-Outlets PDU
- Cord Retention Tray
Features
Package Contents:
Physical Dimensions - (WxHxD) (cm) : 44.45 x 4.45 x 3.81 (cm) Physical Dimensions - (WxHxD) (in) : 17.5 x 1.75 x 1.5 (in) Physical Dimensions - (WxHxD) (mm) : 445 x 44 x 38 (mm) Weight (kg) : 2.04 Weight (lb) : 4.5 Shipping Dimensions - (WxHxD) (cm) : 20.42 x 6.86 x 50.95 (cm) Shipping - Dimensions (WxHxD, in) : 8.04 x 2.7 x 20.06 (in) Shipping - Dimensions (WxHxD, mm) : 204.22 x 68.58 x 509.52 (mm) Shipping - Weight (kg) : 9.41 Shipping - Weight (lb) : 20.75 Cord Length : 10 ft (3.0 m) Derated Input Current : 24 A Input Frequency Range : 50 Hz - 60 Hz Input Plug Type : NEMA L6-30P Maximum Input Current : 30A Plug Style : Straight (Twist Lock) Nominal Output Voltage : 200 - 230 VAC Outlets - Front : 0 Outlets - Rear : 8 Outlets - Total : 8 Outlet Type COMPUTED : 2 - IEC-320 C19 Overload Protection : 16A x 2 USB Charge Port : No LED Indicators : Bank 1 (Green) - Bank 2 (Green) Adjustable Mounting Brackets : 2 sets (L-Short, L-Long) Color : Black Cord Retention Tray/Cord Organizers : Yes External Site Ground Pin : Yes Form Factors Supported : 1U Rackmount Material of Construction : Metal Rack Height : 1U Style : Rackmount Operating Elevation : 0 - 10000 ft (0 - 3048 m) Operating Relative Humidity : 0 - 95 % (non-condensing) Operating Temperature : 32 - 95 °F (0 - 35 °C) Storage Elevation : 0 - 50000 ft (0 - 15239 m) Storage Temperature : 5 - 113 °F (-15 - 45 °C) Environmental : RoHS Compliant Safety : UL60950_1 certified by ETL Product Warranty : Limited Lifetime Warranty
Yes
Restriction of Hazardous Substances (RoHS)
China
- PDU30BHVT8R 8-Outlets PDU
- Cord Retention Tray
- User Manual
- Screw Kit
- Cord Clip Kit
- Horizontal Mounting Brackets
- Vertical Mounting Brackets
- Product Registration Card
Additional Information:
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Country of Origin:
China
Specs
| Power Description | |
| Input Voltage Range | 200 V AC - 230 V AC |
| Input Voltage | 230 V AC |
| Output Voltage Range | 200 V AC - 230 V AC |
| Input Current | 30 A |
| Physical Characteristics | |
| Weight (Approximate) | 4.50 lb |
| Mount Type | Rack-mountable |
| Height | 1.8" |
| Mounting Orientation | Vertical |
| Width | 17.5" |
| Rack Height | 1U |
| Depth | 1.5" |
| Warranty | |
| Limited Warranty | Lifetime |
| General Information | |
| Brand Name | CyberPower |
| Manufacturer Website Address | https://www.cyberpowersystems.com/ |
| Marketing Information | The CyberPower PDU30BHVT8R, an 8-outlet (rear) rackmount basic power distribution unit (PDU), provides 208V/230V 30A output. It distributes power to 8 IEC-320 C13, 2 IEC-320 C19 receptacles from a single NEMA L6-30P twist lock plug with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, the PDU30BHVT8R has rugged, industrial-grade metal housing and a 10-foot AC power cord. It can be mounted either horizontally or vertically, includes a cord retention tray, and is ETL/RoHS certified. A limited lifetime warranty covers defects in materials and workmanship in the product under normal use and conditions. |
| Product Type | PDU |
| Product Name | PDU30BHVT8R 200 - 230 VAC 30A Basic |
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | PDU30BHVT8R |
| Product Model | PDU30BHVT8R |
| Product Series | Basic PDU |
| Technical Information | |
| Receptacle Type |
|
| Receptacle Detail |
|
| Phase | Single Phase |
| Plug/Connector Type | NEMA L6-30P |
| PDU Type | Basic |
| Protection Type | Overload Protection |
