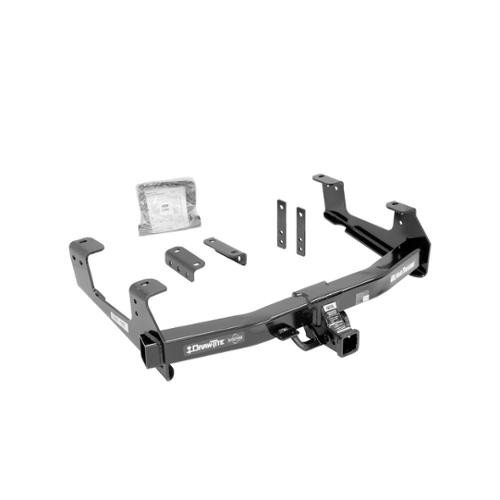

Draw Tite 41950 Class V Ultra Frame Hitch 41950_68

This item is brand-new, factory sealed.

• Designed for full-sized long wheelbase trucks vans and utility vehicles with full frames and heavy-duty suspensions ideal for high tongue weight applications
• Strong, secure heavy-duty side bracket design has an A-Coat base with black powder coat finish and solid all-welded construction for maximum strength and safety
• Rated up to 15,000 lbs. (GTW) Weight Carrying (WC) and up to 17,000 lbs. (GTW) Weight Distributing (WD)
• Custom built according to Manufacturer & Model year ensures perfect fit and top towing performance
• Computer-aided design and fatigue stress testing designed to withstand road abuse within specified capacities
• Features All-Frame attachment points with a strong, secure heavy-duty side bracket design and the A-Coat base with black powder coat finish ensures an attractive appearance for years to come
• 2 inch square receiver tube opening and solid all-welded construction for maximum strength and durability
• Bolt-on installation with simple hand tools; no welding required; complete hardware kit and installation instructions included
• Rated at 1,700/15,000 lbs. (TW/GTW) weight carrying (WC) and 1,700/17,000 lbs. (TW/GTW) weight distributing (WD), always consult your vehicle's owner's manual for actual weight capacities

• Manufacturer: ?Draw-Tite
• Brand: ?Draw-Tite
• Model: ?41950
• Item Weight: ?72 pounds
• Product Dimensions: ?44 x 30 x 11 inches
• Country of Origin: ?Mexico
• Item model number: ?41950
• Is Discontinued By Manufacturer: ?No
• Manufacturer Part Number: ?41950

Draw-Tite's Class V Ultra Frame Receiver is a great heavy-duty solution for weight-distributed towing. The heavy-duty side bracket design distributes the towing load over a greater portion of the tow vehicle frame, making the Ultra Frame the ideal receiver for high tongue weight applications. Rated at up to 16,000 pounds. Gross Trailer Weight (GTW) weight carrying (WC) capacity and rated up to 17,000 pounds. (GTW) with weight distributing (WD) installation, the Ultra Frame offers a rugged solution for your heavy-duty applications. Draw-Tite begins with solid, all-welded construction for maximum strength and safety and an all-frame attachment for maximum weight distribution. Every Ultra Frame receiver is custom built according to manufacturer and model year using Computer-Aided Design (CAD) for a perfect fit and top towing performance. Purchasers can expect many years of reliable performance under rugged conditions. The 2" square receiver opening is J-Pin Ready. The A-Coat base w/ black powder coat finish is designed to withstand corrosion while looking good for years to come. The Draw-Tite Ultra Frame ball mount must be used to achieve maximum weight carrying rating. All Draw-Tite hitches meet and exceed V-5 and SAE J684 standards and are fully inspected for quality and workmanship and backed with a nationwide limited lifetime warranty. Removable drawbar, pin and clip are sold separately. Draw-Tite is the premier brand of custom trailer hitches. Established in 1946, Draw-Tite was born out of a passion for outstanding performance and has come to represent one of the best custom-fit vehicle products available today. Each hitch designed must pass rigorous tests to become tested tough. With increased tongue weight capacity and integration of hitch match, an all-new accessory pairing guide, Draw-Tite is the brand of choice for years of dependable service.
