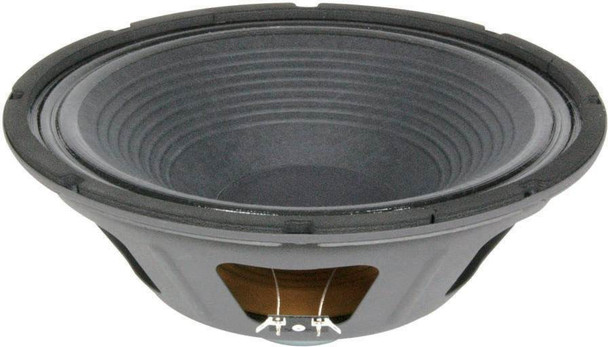

Eminence Liltexas 12" Guitar Spkr; 125w; 8 Ohms W/copper Voice Coil

This item is brand-new, factory sealed.

This table charts the specifications for the LIL\' TEXAST speaker
* Nominal Basket Diameter: 12-in , 305 mm.
* Nominal Impedance: 8 Ohms.
* Power Rating:
* Watts: 125 W.
* Music Program: N/A.
* Resonance: 90 Hz.
* Usable Frequency Range: 80 Hz - 5 kHz.
* Sensitivity: 101.2 dB.
* Magnet Weight: 4 oz..
* Gap Height: 0.28-in , 7.1 mm.
* Voice Coil Diameter: 2-in , 51 mm.
* Thiele & Small Parameters.
* Resonant Frequency (fs): 90 Hz.
* DC Resistance (Re): 7.2 Ohms.
* Coil Inductance (Le): 0.42m H.
* Mechanical Q (Qms): 11.29.
* Electromagnetic Q (Qes): 0.69.
* Total Q (Qts): 0.65.
* Compliance Equivalent Volume (Vas): 43.3 liters / 1.53 cu.ft..
* Peak Diaphragm Displacement Volume (Vd): 66 cc.
* Mechanical Compliance of Suspension (Cms): 0.11 mm/N.
* BL Product (BL): 12.8 T-M.
* Diaphragm Mass Inc. Airload (MMs): 28 grams.
* Efficiency Bandwidth Product (EBP): 130.
* Maximum Linear Excursion (Xmax): 1.27 mm.
* Surface Area of Cone (Sd): 519.5 cm2.
* Maximum Mechanical Limit (Xlim): N/A.
-----------------------------------
Recommended Enclosure Volume;
* Sealed: Acceptable.
* Vented: Acceptable.
* Driver Volume Displaced: 0.059 cu.ft. / 1.67 liters.
* Overall Diameter: 12.03-in , 305.6 mm.
* Baffle Hole Diameter: 11.07-in , 281.2 mm.
* Front Sealing Gasket: Yes.
* Rear Sealing Gasket: Yes.
* Mounting Holes Diameter: 0.25-in , 6.4mm.
* Mounting Holes B.C.D.: 11.59-in , 294.4mm.
* Depth: 5.07-in , 128.8 mm.
* Net Weight: 4.1 lbs, 1.86 kg.
* Shipping Weight: 5.8 lbs, 2.63 kgs.
* Materials of Construction.
* Coil Construction: Copper voice coil.
* Coil Former: Polyimide former.
* Magnet Composition: Neodymium magnet.
* Core Details: Non-vented core.
-----------------------------------.
* Basket Materials: Pressed steel basket.
* Cone Composition: Paper cone.
* Cone Edge Composition: Paper cone edge.
* Dust Cap Composition: Zurette dust cap.
