Gigabyte Technology

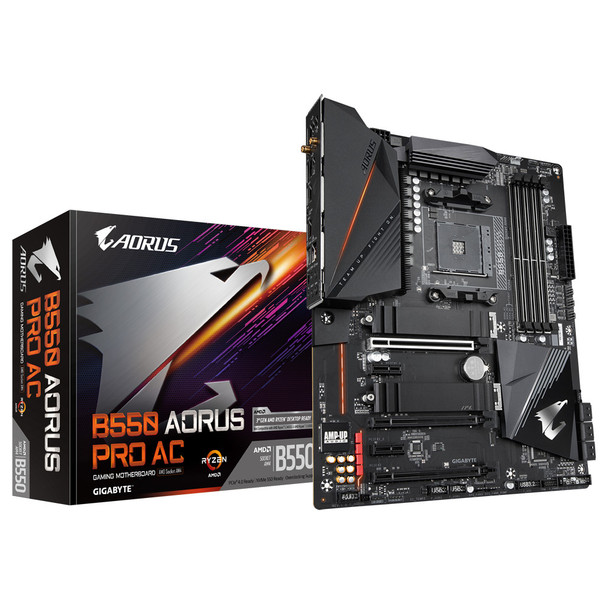

Aorus Ultra Durable B550 AORUS PRO AC Desktop Motherboard - AMD Chipset - Socket AM4 - ATX (b550aorusproac)

(No reviews yet) Write a Review
SKU:
18015795
MPN:
b550aorusproac
Availability:
Out of stock
Stock Update:
12/07/2023 10:29:50 AM PST
  • Main
  • Alternate-Image9
  • Alternate-Image8
  • Alternate-Image7
  • Alternate-Image6
  • Alternate-Image5
  • Alternate-Image4
  • Alternate-Image3
  • Alternate-Image20
  • Alternate-Image2
  • Alternate-Image19
  • Alternate-Image18
  • Alternate-Image17
  • Alternate-Image16
  • Alternate-Image15
  • Alternate-Image14
  • Alternate-Image13
  • Alternate-Image12
  • Alternate-Image11
  • Alternate-Image10
  • Alternate-Image1

Out of stock

Stock Update:
12/07/2023 10:29:50 AM PST

Description

This item is brand-new, factory sealed.

Supports 3rd Gen AMD Ryzen Processors

Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs

True 12+2 Phases Digital VRM Solution with 50A DrMOS

Advanced Thermal Design with Fins-Array Heatsink and Direct Touch Heatpipe

Ultra Durable PCIe 4.0 Ready x16 Slot

Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guards

Onboard Intel Dual Band 802.11ac & BT 4.2 Wireless with AORUS Antenna

AMP-UP Audio with ALC1220-VB and WIMA Capacitors for Rear 120dB SNR

Blazing Fast 2.5GbE LAN with Bandwidth Management

USB 3.2 Gen2 Type-C & HDMI Support

RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips

Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP

Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

Pre-installed IO Shield for Easy and Quick InstallationCPU
AMD Socket AM4, support for: 3rd Generation AMD RyzenTM processors/ New Generation AMD RyzenTM with RadeonTM Graphics processorsChipset
AMD B550Memory
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
3rd Gen AMD RyzenTM Processors: Support for DDR4 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
New Generation AMD RyzenTM with RadeonTM Graphics processors: Support for DDR4 5400(O.C.) / 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modulesOnboard Graphics
Integrated in the New Generation AMD RyzenTM with RadeonTM Graphics processors:

1 x HDMI port, supporting a maximum resolution of 4096x2160 at 60 Hz
-Support for HDMI 2.1 version, HDCP 2.3, and HDR.

Maximum shared memory of 16 GBAudio
Realtek ALC1220-VB codec
-The back panel line out jack supports DSD audio.
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF OutLAN
Realtek 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)Wireless Communication module
Intel Wi-Fi 3168

WIFI 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
BLUETOOTH 4.2
Support for 11ac wireless standard and up to 433 Mbps data rate
-Actual data rate may vary depending on environment and equipment.Expansion Slots
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:

3rd Generation AMD RyzenTM processors support PCIe 4.0 x16 mode
New Generation AMD RyzenTM with RadeonTM Graphics processors support PCIe 3.0 x16 mode
-For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset:

Supporting PCIe 3.0 x4 mode
-The M2B_SB connector shares bandwidth with the PCIEX4 slot. The PCIEX4 slot will become unavailable when an SSD is installed in the M2B_SB connectors.

1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset:

Supporting PCIe 3.0 x2 mode
-The PCIEX2 slot shares bandwidth with the SATA3 4, 5 connectors. The PCIEX2 slot will become unavailable when a device is installed in the SATA3 4 or SATA3 5 connector.

2 x PCI Express x1 slotsStorage Interface
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:

3rd Generation AMD RyzenTM processors support SATA and PCIe 4.0 x4/x2 SSDs
New Generation AMD RyzenTM with RadeonTM Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs

1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:

Support PCIe 3.0 x4/x2 SSDs

6 x SATA 6Gb/s connectors, integrated in the Chipset:

Support for RAID 0, RAID 1, and RAID 10USB
CPU:
3 x USB 3.2 Gen 1 ports on the back panel
1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

Chipset:
1 x USB Type-CTM port on the back panel, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
2 x USB 3.2 Gen 1 ports available through the internal USB header
2 x USB 2.0/1.1 ports on the back panel

Chipset+2 USB 2.0 Hubs:
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
2 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x CPU fan header
1 x water cooling CPU fan header
4 x system fan headers
2 x system fan/water cooling pump headers
1 x CPU cooler LED strip/RGB LED strip header
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
2 x temperature sensor headers
1 x Clear CMOS jumper
1 x Thunderbolt headerBack Panel Connectors
1 x HDMI port
2 x SMA antenna connectors (1T1R)
3 x USB 3.2 Gen 1 ports
1 x USB Type-CTM port, with USB 3.2 Gen 2 support
2 x USB 3.2 Gen 2 Type-A ports (red)
6 x USB 2.0/1.1 ports
1 x Q-Flash Plus button
1 x RJ-45 port
1 x optical S/PDIF Out connector
5 x audio jacksI/O Controller
iTE I/O Controller ChipH/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Overheating warning
Fan fail warning
Fan speed control
-Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0Unique Features
Support for APP Center
-Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
at BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress InstallBundled Software
Norton Internet Security (OEM version)
XSplit Gamecaster + Broadcaster (12 months license)
Realtek 8125 Gaming LAN Bandwidth Control UtilityOperating System
Support for Windows 10 64-bitForm Factor
ATX Form Factor 30.5cm x 24.4cmRemark
Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors website or 3rd party website.

Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.



Package Contents:
  • Ultra Durable B550 AORUS PRO AC (rev. 1.0) Desktop Motherboard
  • Norton Internet Security (OEM version)
  • XSplit Gamecaster + Broadcaster (12 months license)
  • Realtek 8125 Gaming LAN Bandwidth Control Utility

Features

Package Contents:
  • Ultra Durable B550 AORUS PRO AC (rev. 1.0) Desktop Motherboard
  • Norton Internet Security (OEM version)
  • XSplit Gamecaster + Broadcaster (12 months license)
  • Realtek 8125 Gaming LAN Bandwidth Control Utility



Brand Compatibility:
AMD



Country of Origin:
China



Specs

Physical Characteristics
Form FactorATX
Width12"
Depth9.6"
Warranty
Limited Warranty3 Year
I/O Expansions
Number of PCI Express x1 Slots2
Number of PCI Express x16 Slots3
Number of Total Expansion Slots5
Total Number of PCI Express Slots5
Memory
Memory TechnologyDDR4 SDRAM
Number of Memory Slots4
Memory Speed Supported
Memory Form Factor
Maximum Memory Supported128 GB
General Information
Brand NameAorus
Manufacturer Website Addresshttp://www.gigabyte.us
Marketing InformationAMD B550 AORUS Motherboard with True 12+2 Phases Digital VRM, Fins-Array Heatsink, Direct-Touch Heatpipe, Dual PCIe 4.0/3.0 x4 M.2 with Thermal Guards, Intel® 802.11ac Wireless, 2.5GbE LAN, RGB FUSION 2.0, Q-Flash Plus
Supports 3rd Gen AMD Ryzen™ Processors
Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
True 12+2 Phases Digital VRM Solution with 50A DrMOS
Advanced Thermal Design with Fins-Array Heatsink and Direct Touch Heatpipe
Ultra Durable™ PCIe 4.0 Ready x16 Slot
Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guards
Onboard Intel® Dual Band 802.11ac & BT 4.2 Wireless with AORUS Antenna
AMP-UP Audio with ALC1220-VB and WIMA Capacitors for Rear 120dB SNR
Blazing Fast 2.5GbE LAN with Bandwidth Management
USB 3.2 Gen2 Type-C™ & HDMI Support
RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
Pre-installed IO Shield for Easy and Quick Installation
DESIGN CONCEPT
DOMINANT IN DARKNESS
In the dark, starless night, the falcon strikes fear into the heart of its prey. Even with minimal visibility, the falcon pinpoints its prey and patiently anticipates the perfect moment to swoop in for the kill. The falcon with its laser sharp gaze dominates the darkness of night in the same manner that AORUS Core Lighting illuminates the vast AORUS ecosystem.
ULTIMATE POWER DESIGN
To fully support the latest 3rd Gen AMD Ryzen™ processors, B550 motherboards equip with the ultimate power solution which is true direct, digital and multiple phases. After countless experiments and testing, GIGABYTE presents the unbeatable B550 motherboards for enthusiast. No Compromise and never stop to achieve higher.
True 12+2 Phases Digital Power Design
B550 AORUS PRO AC motherboard uses an True 12+2 phases digital power design which includes PWM controller, doublers and DrMOS. These 100% digital controller offer incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum performance from 3rd Gen AMD Ryzen™ processors.
Digital PWM Controller delivers appropriate voltage to the CPU.
True 12+2 Phases DrMOS with PWM Doublers design to deliver stable power to the CPU. With capability to handle up to 700 Amps current in a total.
All-solid capacitors to improve Transient response and minimize oscillation.
24pin+8pin Solid Pin CPU Power Connectors
UNPARALLELED PERFORMANCE
GIGABYTE realize that customer won't stop chasing a better computing performance. We take care of it and implement on products. Protective and optimized memory trace enhance the performance. Faster read and write are needed to save time and improve efficiency. We offer plenty of M.2 storage with thermal guards to ensure unthrottled read and write. In advance, adopting PCIe 4.0 ready components get the B550 motherboards easier to upgrade.
Product TypeDesktop Motherboard
Product NameUltra Durable B550 AORUS PRO AC (rev. 1.0) Desktop Motherboard
ManufacturerGIGABYTE Technology, Inc
Manufacturer Part NumberB550 AORUS PRO AC
Product ModelB550 AORUS PRO AC
Product LineUltra Durable
Processor & Chipset
Chipset ManufacturerAMD
Processor Supported
Total Processor Supported1
Processor SocketSocket AM4
Chipset ModelB550
Onboard Interfaces
Number of SATA Interfaces6
Total Number of Onboard USB Ports6
Number of Onboard USB 3.2 Ports2
Number of M.2 Interfaces2
Number of Onboard USB 2.0 Ports4
Interfaces/Ports
S/PDIFYes
Number of USB 3.2 Ports6
HDMIYes
Number of USB 2.0 Ports6
Total Number of USB Ports12
Number of Network (RJ-45) Ports1
I/O Controller
RAID SupportedYes
Controller TypeSerial ATA/600
RAID Levels
Video
Onboard VideoCPU Dependent Video
Network & Communication
Wireless LANYes
Wireless LAN StandardIEEE 802.11b/g/n/ac
BluetoothYes
2.5Gigabit EthernetYes
Audio
Audio Channels7.1
