Siig 230092 Ac Ju-dk0e11-s1 Aluminum Usb-c Mst Video Docking Station W Pd Brown Box

This item is brand-new, factory sealed.

Transforms a single USB-C port, with DP Alt mode* or Thunderbolt 3 technology, into multiple connectivity ports including up to three simultaneous video outputs**

Note: *Requires a USB-C port that supports DisplayPort Alternate Mode (DP Alt Mode). Not all USB-C ports/systems support DP Alt Mode functionality. **Requires GPU / graphics card to support at least 3 external displays to use all 3 video ports at the same time with extended mode

DisplayPort Multi Stream Transport* (MST) technology supports single 4K @30Hz Ultra HD video output, dual Full-HD 1080p video outputs (HDMI/DP, DP/VGA, HDMI/VGA) or triple HD 720p video outputs

*Note: Mac OS does not support MST function and will only mirror the displays

Supports PD 3.0* specification, provides up to 100W to power/charge Laptops, Notebooks, and other peripheral devices

*Note: The computer and power adapter must support PD 3.0 specification, otherwise the dock will reset when power delivery is disconnected

Adds one USB-C PD 3.0 port, two USB 3.0 ports (with BC 1.2 charging), one USB 2.0 port, one HDMI port, one DisplayPort output, one VGA port, one Gigabit Ethernet port, a headphone audio jack, and one SD/TF (Micro SD) card reader slot

Acts as a laptop stand and Tablet/Cell phone holder with handy flip-up stand, non-slip top and bottom surfaces ensures that devices are stable and protected

Slim and compact aluminum housing provides excellent heat dissipation and extra EMF protection for reliable performanceChipset: VL817+RTL8153+GL850+HS100-B
Compatible with USB-C DP Alt mode and Thunderbolt 3 technology
Compatible with DisplayPort 1.2 with MST graphics cards with AMD Eyefinity, NVIDIA Surround and Intel Multiple Displays technology
Supports Power Delivery 3.0 specification up to 100W through USB-C
Supported video cable length
HDMI: Up to 5M (max)
DisplayPort: Up to 3M (max)
VGA: Up to 10M (max)
USB Type-A output
2x USB 3.0 data transfer up to 5Gbps + BC 1.2 (5V/1.5A max)
1x USB 2.0 Type-A, data transfer up to 480Mbps
Integrated Gigabit Ethernet
Up to 1000 Mbps data transfer rate
Backward compatible with 10/100 Mbps
Supports IEEE 802.3x full duplex operation
Compatible with IEEE 802.3, 802.3u
Supports crossover detection and auto-correction
3.5mm audio jack
Stereo audio output (speakers/headphones)
Microphone input
SD 3.0 memory card slot
Memory card type: SD / SDHC (UHS-I) / SDXC (USH-I) / Micro SDHC (UHS-I) / Micro SDXC (UHS-I)
Memory card capacity: 2TB (max)
Supports transfer rate up to 104Mbps
Resolution
Single video mode:
DisplayPort: Up to 3840x2160 at 30Hz
HDMI: Up to 3840x2160p at 30Hz
VGA: Up to 1920x1080p at 60Hz
Dual video mode:
DP+HDMI: Up to 1080p at 60Hz (each display)
DP+VGA: Up to 1080p at 60Hz (each display)
HDMI+VGA: Up to 1080p at 60Hz (each display)
Triple video mode:
DP+HDMI+VGA: Up to 720p at 60Hz (each display)
Product
Color: Iron Gray with Black
Housing material: Aluminum + Non-slip mat
Connectors
1x 24-pin, USB-C, Female, for PC connection
1x 24-pin, USB-C, Female, input (PD 3.0)
1x 19-pin, HDMI Type-A video, Female, Output
1x 20-pin, DisplayPort video, Female, Output
1x 15-pin, D-sub, VGA video, Output
2x 9-pin, USB 3.0, Type-A, Female, BC 1.2 (5V/1.5A) output
1x 4-pin, USB 2.0, Type-A, Female, output
1x 8-pin, RJ-45, Gigabit Ethernet, Female, output
1x 3.5mm, Audio jack (Speaker/Headphones/Microphone)
1x SD/Micro SD Memory Card slot
Environmental conditions
Operating temperature: 32 to 122 degrees F
Storage temperature: 14 to 140 degrees F
Relative humidity: less than 5% to 90% RH (non-condensing)
Certifications/Standards
FCC, CE, RoHS
Requirements
Desktop or laptop computer with an available USB-C port with DisplayPort Alternate Mode (DP Alt Mode) and Power Delivery (PD) or Thunderbolt 3 technology
Windows 10 / 8 / 7
Mac OS 10.13 or later
Mac OS does not support MST function and will only mirror the displays

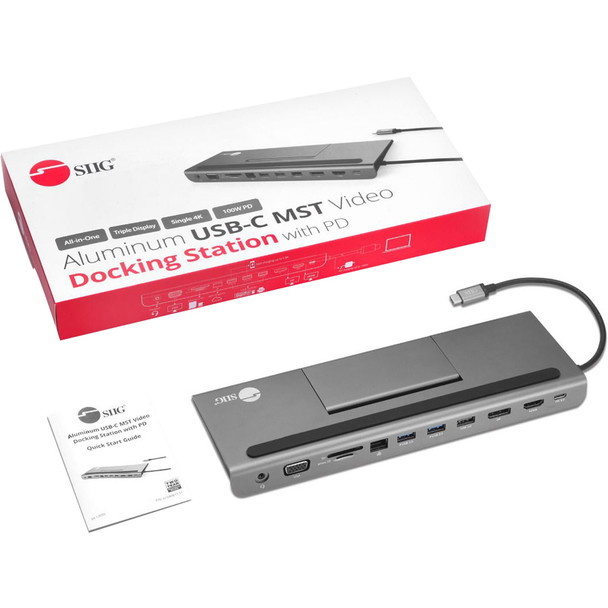

Package Contents
Aluminum USB-C MST Video Docking Station with PD
User Reference Guide
Item Dimension ( L inchxW inchxH inch)
11 x 1 x 4Weight
1.0 lbWarranty Information
2 years

Package Contents:

• Aluminum USB-C MST Video Docking Station with PD
• User Reference Guide
