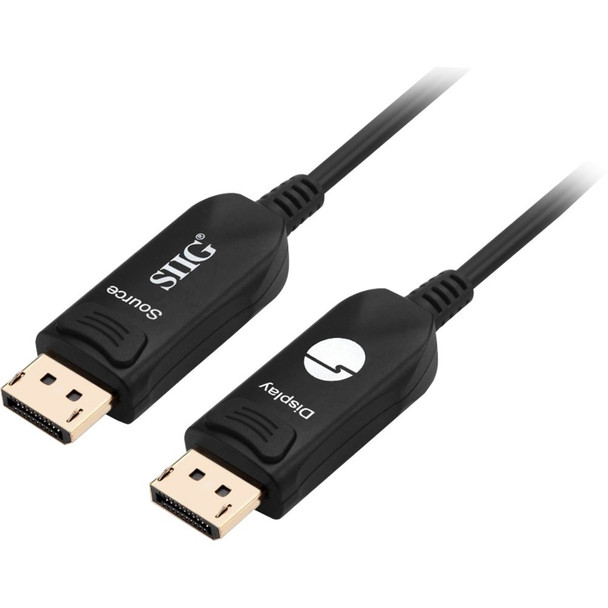

Siig 237069 Cb Cb-dp2211-s1 4k Dp 1.2 Aoc Cable 4kx2k 60hz 26awg Black 15m Brown Box

This item is brand-new, factory sealed.

Connects DisplayPort source devices to DisplayPort equipped monitors or displays over long distances

Transmits Ultra HD 4K signals up to 15 meters (49ft)

Compliant with DisplayPort 1.2 specification, 1, 2 and 4 lanes at 1.62Gbps, 2.7Gbps & 5.4Gbps

21.6Gbps signal bandwidth and up to 4Kx2K 60Hz YUV 4:4:4 resolution

AOC (Active Optical Cable) Fiber/Copper inner conductor material and gold-plated connectors provide maximum video clarity

Very low Electro Magnetic Interference (EMI) and Radio Frequency Interference (RFI) profile allows installing the cable into sensitive environments

Features unidirectional connection requiring the cable to be installed in a specific direction, the end marked Source plugs into a DisplayPort source and the end marked Display plugs into a DisplayPort TV, monitor, projector, and other display devices

Premium quality latching DisplayPort connector prevents accidental disconnection

Plug and Play and hot swappable
Compatible with DisplayPort 1.2 specification
Complies with HDCP 2.2 and 1.4 content protection
Resolution:
Up to 4Kx2K 60Hz YUV 4:4:4
Bandwidth:
Up to 21.6Gbps (5.4Gbps per channel)
Active Optical Cable technology:
4x Discrete Optical Channels, 10GHz, 850nm
Cable outside diameter:
4.5mm OD
Wire gauge:
26AWG
Cable jacket:
PVC
Flame retardance: UL VW-1
Product:
Cable length: 15m (49ft)
DP connector housing material: Zinc alloy
Color: Black
Connectors:
1 x 20-Pin, DisplayPort, Latching, Male, Source
1 x 20-Pin, DisplayPort, Latching, Male, Display
Gold plated
Environmental conditions:
Operating temperature: 32 to 122 degrees F
Storage temperature: -10 to 158 degrees F
Humidity: < 5% to 85% (non-condensing)
Certifications/Standards:
FCC, CE, RoHS
Item Dimension (L"x W"x H")
4 x 9 x 9
Weight
3.00 LB
Warranty Information
2 years
