Startech

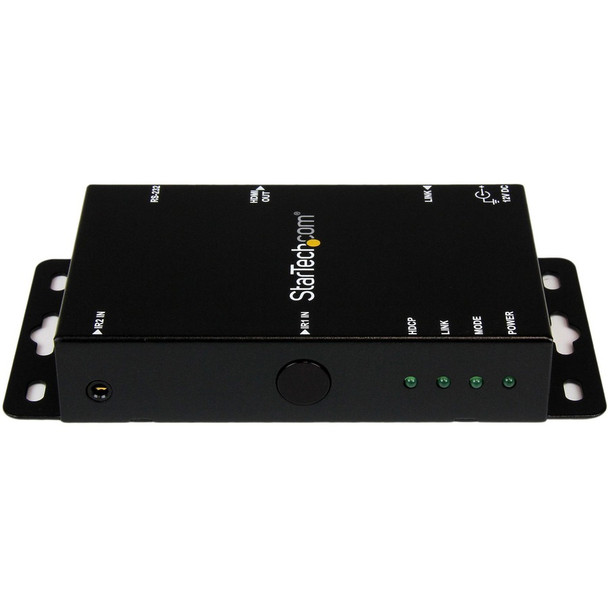

StarTech.com HDMI over CAT5e/CAT6 HDBaseT Extender - RS232 - IR - Ultra HD 4K - 330 ft (100m) (ST121UTPHD2)
- SKU:
- 18146360
- MPN:
- st121utphd2
- Availability:
- Out of stock
- Stock Update:
- 06/14/2022 01:46:29 AM PST
- Stock Update:
- 06/14/2022 01:46:29 AM PST
Description
This item is brand-new, factory sealed.
Extend an HDMI® video and audio over standard CAT5 cabling, with support for RS232 Serial and Infrared control. The ST121UTPHD2 HDMI® over Cat5 Extender Kit can extend the audio and video signal output from an HDMI®-equipped device by up to 330 feet (100 Meters), over a single CAT5 cable, or up to 165 Feet (50 Meters) over a single CAT6 cable. The extender supports full High-Definition video (1080p) and HD 3D, and also extends the accompanying digital audio signal.
For convenient, time-saving control of the media source, the CAT5 HDMI extender offers bi-directional RS232 serial and Infrared (IR) interfaces, which enable you to control the HDMI audio-video source from either end of the connection.
The HDMI over CAT5 Extender Kit includes both the HDMI® to CAT5 transmitter and the Cat5 to HDMI receiver needed for a cost-effective, ready-to-use digital signage solution.
To help ensure seamless performance without any unexpected or unnecessary interruptions, the HDMI Ethernet transmitter and receiver units are fully compliant with High Speed HDMI® and HDCP standards, and each unit features lockable power connectors to prevent accidental disconnections.
The ST121UTPHD2 HDMI over Cat5 Extender Kit is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Package Contents:
- HDMI over Cat5 Video Extender with Audio - RS232 and IR Control
- 1 x IR Receiver Cable
- 1 x IR Transmitter Cable
- 1 x HDMI Cable - 4 ft (1.2 Meters)
- 2 x Universal Power Adapter NA / UK / EU
- 1 x User Manual
Features
- 1 x Local HDMI Extender Unit
- 1 x Remote HDMI Receiver Unit
- 1 x IR Receiver Cable
- 1 x IR Transmitter Cable
- 1 x HDMI Cable x 4 ft (1.2 Meters)
- 2 x Universal Power Adapter NA / UK / EU
- 1 x User Manual
Certifications & Standards:
- CE
- FCC
TAA Compliant:
Yes
Environmentally Friendly:
Yes
Environmental Compliance:
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Restriction of Hazardous Substances (RoHS)
Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin:
Taiwan
Specs
| Power Description | |
| Input Voltage |
|
| Physical Characteristics | |
| Product Material | Steel |
| Transmitter Weight (Approximate) | 1.28 lb |
| Receiver Width | 3.10" |
| Receiver Height | 1" |
| Length | 5.9" |
| Product Color | Black |
| Receiver Depth | 5.90" |
| Transmitter Depth | 5.90" |
| Receiver Weight (Approximate) | 1.28 lb |
| Transmitter Height | 1" |
| Transmitter Width | 3.10" |
| Warranty | |
| Limited Warranty | 2 Year |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| HDMI Out | Yes |
| Number of HDMI Inputs | 1 |
| HDMI In | Yes |
| Number of HDMI Outputs | 2 |
| Serial Port | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Video | |
| Maximum Video Resolution | 3840 x 2160 |
| Graphics Modes | 4K |
| General Information | |
| Brand Name | StarTech.com |
| Manufacturer Website Address | http://www.startech.com |
| Marketing Information | The StarTech.com HDBaseT extender kit, extends HDMI up to 330 feet (100 Meters) over a single CAT5e or CAT6 cable. The extender supports Ultra HD and Full HD resolutions (4K / 1080p) with support for 3D and the accompanying 7.1 digital audio. For added versatility the transmitter and receiver can be used to transmit IR and RS232 serial communication over the same cable. The versatility of this video extender makes it an ideal solution for digital signage applications. What is HDBaseT? HDBaseT is a standardized, zero latency, video distribution technology that's revolutionizing HDMI distribution. HDBaseT uses an advanced method of modulation that enables you to distribute uncompressed HDMI audio and video along with additional signals such as 100BaseT Ethernet, IR, RS-232 serial and power over cable. Extend More with HDBaseT The extender offers HDBaseT technology with HDMI, IR, and RS232 control in a single CAT 5e extender kit, for complete end-to-end control. Offering greater versatility than traditional HDMI extenders or HDMI cabling alone HDBaseT is the clear choice for every integrator and system designer. The IR extension enables you operate your display and an IR-enabled source device, such as a Blu-ray player or TV Set top box, from either end of your extension. While RS232 control let you to connect a serial I/O device at your display - an ideal solution for adding a serial touch screen interface to your remote display. Astonishing Picture Quality from an Impressive Distance With the A/V industry quickly adopting 4K as the new high-resolution video standard, long range video distribution can be a challenge with standard HDMI cables beginning signal degradation at 30 feet. With support for 4K 30Hzyou'll be amazed at how HDBaseT maintains your Ultra HD picture quality, four times the resolution of high-definition 1080p, even at 164 feet away from your video source. Plus, because the extender is still backward compatible with High-Definition 1080p displays and video sources, you can rest assured this extender will make your video source look great in any remote digital signage application. Simplify Your Setup This extender has been specially crafted for a smooth, tidy installation. HDBaseT technology allows for single cable installation, for seamless integration using existing CAT5e or CAT6 infrastructure, avoiding the hassle of running multiple cables, while reducing potential failure points. Mounting hardware is also built-in to both the extender and receiver for discrete, professional mounting. The ST121UTPHD2 is backed by a 2-year StarTech.com warranty and free lifetime technical support. More from the Manufacturer |
| Product Type | Video Extender Transmitter/Receiver |
| Packaged Quantity Condition | Kit |
| Product Name | HDMI over Cat5 Video Extender with Audio - RS232 and IR Control |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | ST121UTPHD2 |
| Media & Performance | |
| Twisted Pair Cable Standard | Category 6 |
| Media Type Supported | Twisted Pair |
| Technical Information | |
| Maximum Operating Distance | 328.08 ft |
| Number of Input Devices Supported | 1 |
| Connectivity Technology | Wired |
| Number of Output Devices Supported | 1 |
