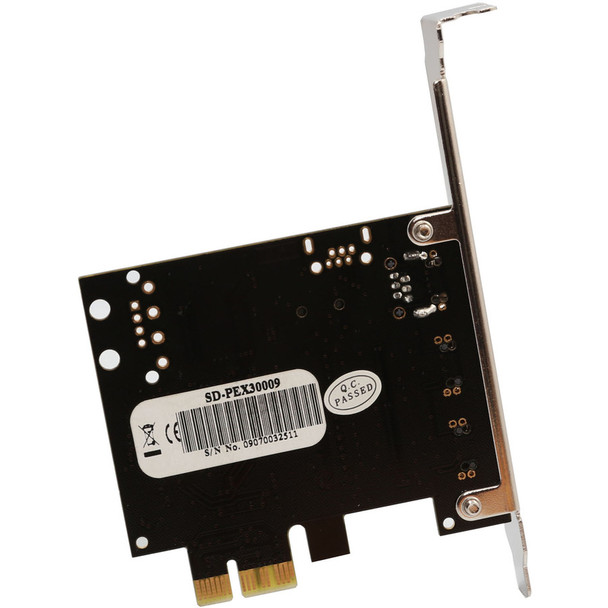

Syba Multimedia Low Profile Pci-express 1394b Firewire Card - Pci Express X1 - Plug-in Card - 3 Firewire Port[s] (101791)

This item is brand-new, factory sealed.

1-Lane (x1) PCI-Express with transfer rate 2.5Gbps Full Duplex channel
.
Using with TI XIO2213 chipset
.
2x 1394B firewire ports + 1x 1394A firewire port + 1x 1394A firewire internal header
.
Compliant with PCI-Express Revision 1.0a
.
Support provisions of IEEE Standard P1394b-2002
.
Compliant with 1394 Open Host Controller Interface (OHCI) specification Revision 1.1 and 1.2 draft
.
Support 800 / 400 / 200 / 100Mbps transfer rate
.
Fully Plug & Play and Hot Plug supported
.
Fully backward compatible to 1394a specification
.
Compliant with IEEE 1394a-2000 and 1394-1995 standard for a High-Performance Serial Bus
.
Fully interoperable with Firewire, iLink and SB1394 implementation of IEEE 1394 standard
.
Equipped with Bilingual IEEE Standard 1394b-2002 ports for 800Mbps data transferring
.
Software driver supports for windows 98SE/ME/2000/Server 2003/XP-32bit/XP-64bit/Vista 32-bit/Vista-64bit
.

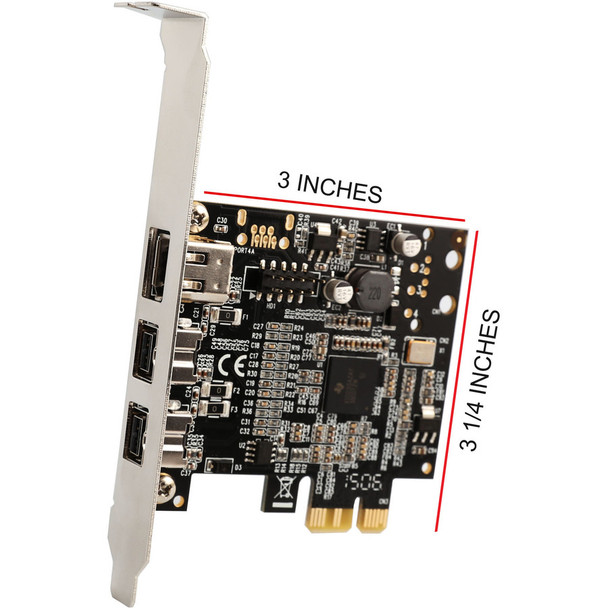

Dimension: 6.9x5.6x1.5 Inch
.
Weight: 4.8 Oz .IncludedPCI-Express IEEE 1394B firewire controller card, user manual, driver CD, standard PCI-Express bracketWarranty3 Years

Package Contents:

• Low Profile PCI-Express 1394B Firewire Card
• User Manual
• Driver CD
• Standard PCI-Express Bracket

Features

Package Contents:

• 2 Port 1394B Firewire &1 Port 1394A PCI-e 1.0 x1 Card
• User Manual
• Driver CD
• Standard PCI-Express Bracket



Environmentally Friendly:
Yes



Platform Supported:

Mac
PC



Environmental Compliance:

Restriction of Hazardous Substances (RoHS)
Waste Electrical and Electronic Equipment Directive (WEEE)



Country of Origin:
China



Specs

Physical Characteristics
Thickness	1.5"
Form Factor	Plug-in Card
Weight (Approximate)	4.80 oz
Height	5.6"
Width	6.9"
Warranty
Limited Warranty	1 Year
Interfaces/Ports
Number of FireWire/i.LINK 400 Ports	1
Total Number of FireWire/i.LINK Ports	3
Number of FireWire/i.LINK 800 Ports	2
General Information
Brand Name	SYBA Multimedia
Manufacturer Website Address	http://www.syba.com
Marketing Information	Add FireWire ports to your system for added functionality for Audio/Video programs with Syba SD-PEX30009 2 Port Fire wire 1394b 1 Port 1394a PCI-e 1.0 x1 Controller Card with Full and Low Profile Bracket Texas Instruments Chipset.
Product Type	FireWire Adapter
Product Name	2 Port 1394B Firewire and1 Port 1394A PCI-e 1.0 x1 Card
Manufacturer	SYBA Multimedia, Inc
Manufacturer Part Number	SD-PEX30009
Media & Performance
Data Transfer Rate	800 MB/s 400 MB/s
Technical Information
Host Interface	PCI Express x1
