Syba
IO Crest 4 port Non-RAID SATA III 6Gbp/s and M.2 B Key 2242 PCI-e x4 Controller Card (si-pex40138)
- SKU:
- 18902620
- MPN:
- si-pex40138
- Availability:
- Usually ships the same or next business day.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 05/15/2024 02:06:15 AM PST
- Stock Update:
- 05/15/2024 02:06:15 AM PST
Description
This item is brand-new, factory sealed.

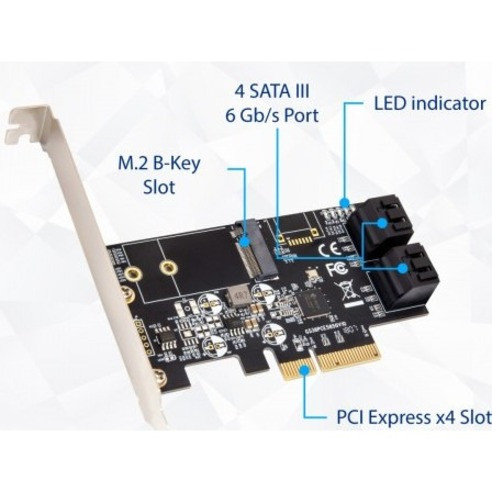

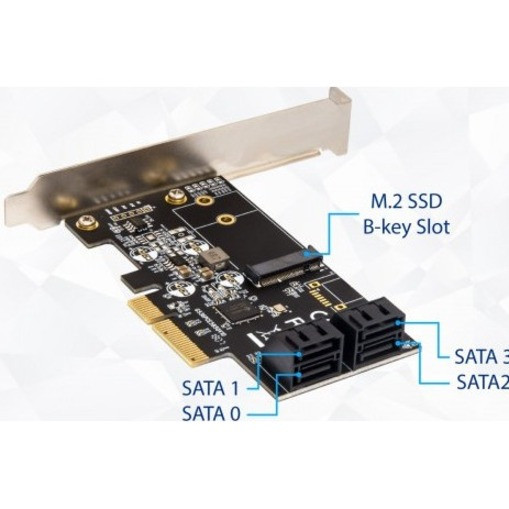

IO CREST SI-PEX40138 Internal 4 Port Non-Raid SATA III 6GB/S with M.2 B-Key 22x42 Pci-E X4 Controller Card for Desktop PC Support SSD and HDD with Low Profile Bracket. JMB585 Chipset- Connect four SATA drives and ONE M.2 B-Key SSD to any free PCI-E x4 Slot, providing up to 1700 MB/s Speed.
- Plug and play supported, No additional software installation or setting required.
- Can support port Multiplier that is not in a RAID configuration.
- Complies with PCI Express base Specification Revision 3.1a. Compatible with SATA hard drives & Solid state drives and computer systems with SATA controllers.
- This card is only design for storage Use only, can not Boot any OS/ system drives. Backed by syba 3 Year hassle-free warranty and lifetime customer service. Important Note: only work with PCI-E slot, not for PCI slot.
- Brand: IO CREST
- Series: SI-PEX40138
- Item model number: SI-PEX40138
- Item Weight: 6.1 ounces
- Product Dimensions: 4 x 4.75 x 0.75 inches
- Item Dimensions L x W x H: 4 x 4.75 x 0.75 inches
- Manufacturer: IO Crest
Using the JMB585 chipset, the SI-PEX40138 can provide extra 4 port SATA III and ONE 22x42 M.2 B-Key slot to any free PCI-E x4 slot with PCIe Gen3 x2. Of bandwidth. For the storage solution based on data transfer of multiple hard drives, The newly added FIS-based switching design can overcome the bottlenecks created by operating multiple SATA storage devices simultaneously. The data transmission rate of the JMB585 can achieve to 1700MB/s, which is the maximum transfer speed of PCIe Gen3 x2.
Package Contents:
- 4 port Non-RAID SATA III 6Gbp/s and M.2 B Key 2242 PCI-e x4 Controller Card
- 4 x SATA Cables
- Manaul
Features
Package Contents:
Yes
China
- 4 port Non-RAID SATA III 6Gbp/s and M.2 B Key 2242 PCI-e x4 Controller Card
- 4 x SATA Cables
- Manaul
Environmentally Friendly:
Yes
Platform Supported:
PC
Linux
Country of Origin:
China
Specs
Physical Characteristics | |
Form Factor | Plug-in Card |
Height | 4.8" |
Width | 4.2" |
Warranty | |
Limited Warranty | 3 Year |
Interfaces/Ports | |
Number of SAS Ports (Internal) | 4 |
Total Number of SAS Ports | 4 |
General Information | |
Brand Name | IO Crest |
Manufacturer Website Address | http://www.syba.com |
Marketing Information | Using the JMB585 chipset, the SI-PEX40138 can provide extra 4 Port SATA III and one 22x42 M.2 B-key Slot to any free PCI-e x4 slot with PCIe Gen3 x2. of bandwidth. For the storage solution based on data transfer of multiple hard drives, the newly added FIS-based switching design can overcome the bottlenecks created by operating multiple SATA storage devices simultaneously. The data transmission rate of the JMB585 can achieve to 1700MB/s, which is the maximum transfer speed of PCIe Gen3 x2. |
Product Type | SATA Controller |
Product Name | 4 port Non-RAID SATA III 6Gbp/s and M.2 B Key 2242 PCI-e x4 Controller Card |
Manufacturer | SYBA Multimedia, Inc |
Manufacturer Part Number | SI-PEX40138 |
Packaged Quantity | 1 |
Technical Information | |
RAID Supported | No |
Host Interface | PCI Express x4 |
Controller Type | Serial ATA/600 |
Warranty Information
All Items are Brand New, Factory Sealed and come with a standard warranty. [Read our policies]
View AllClose
IO Crest 4 port Non-RAID SATA III 6Gbp/s and M.2 B Key 2242 PCI-e x4 Controller Card (si-pex40138)
$45.92
