Synology
Synology MR2200ac IEEE 802.11ac Ethernet Wireless Router (222906)
(No reviews yet)
Write a Review
- SKU:
- 18166367
- MPN:
- 222906
- Availability:
- Out of stock
- Stock Update:
- 07/04/2025 04:30:26 AM PST
- Stock Update:
- 07/04/2025 04:30:26 AM PST
Description
This item is brand-new, factory sealed.

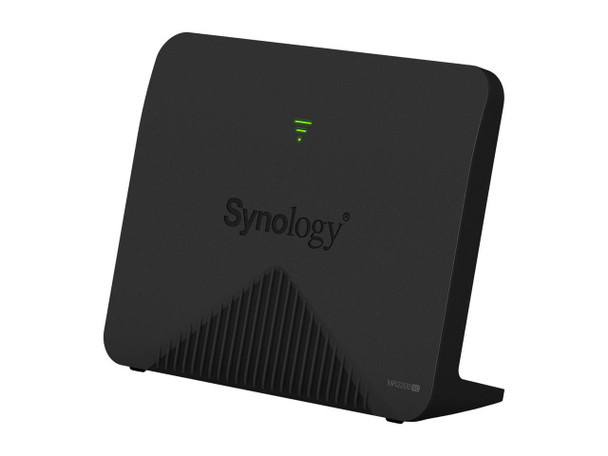

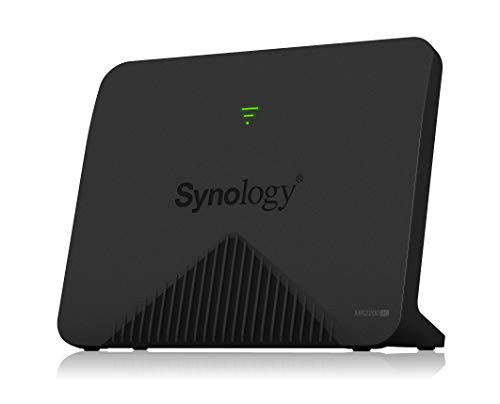

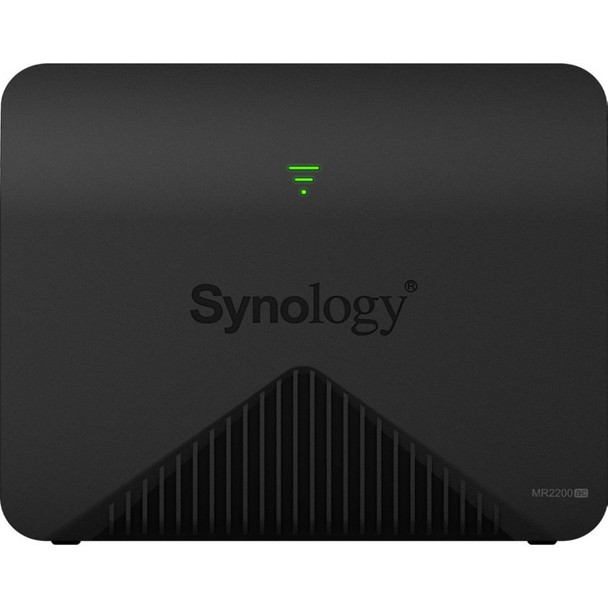

Synology Mesh Router MR2200acComing with intelligent mesh Wi-Fi capability and best-in-class parental controls, MR2200ac is designed to keep all devices connected and everyone safe. Experience the award-winning Synology Router Manager (SRM) with an MR2200ac, and add more when you are ready to expand your coverage even further.
Smart Wi-Fi all around

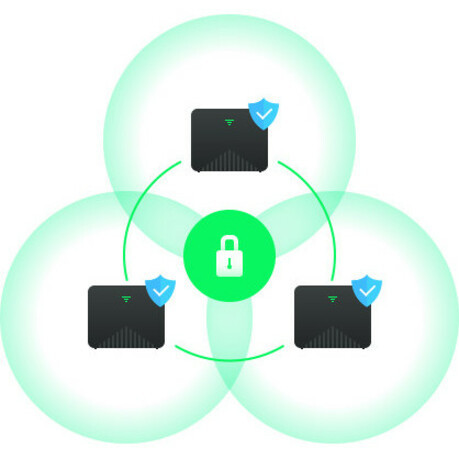

Multiple MR2200ac can work together as a system to bring Wi-Fi to every corner of your home. Wherever you go, stay on a single Wi-Fi network and enjoy seamless connectivity from one place to another.
The intelligence behind your mesh network
The algorithms built into SRM make deployment incredibly easy. The system intelligently self-configures, self-optimizes, and even self-heals, always giving you the fastest possible path to the Internet.
Whole-home Wi-Fi, easily managed
State-of-the-art technology doesnt have to be complicated. See how Wi-Fi Connect makes your mesh Wi-Fi straightforward - and powerful.
Hardware Specifications
CPU
Quad core 717 MHz
Memory
256 MB DDR3
Antenna type
2x2 MIMO high-performance internal antenna (2.4 GHz / 5 GHz)
LAN port
Gigabit (RJ-45) x 1
WAN port
Gigabit (RJ-45) x 1
External Ports
USB 3.0 x 1 (5V, 0.9A power output)
Button and switch
WPS, Power, Reset, Wi-Fi On/Off
Temperature
Operating Temperature: 5oC to 40oC (40oF to 104oF)
Storage Temperature: -20oC to 60oC (-5oF to 140oF)
Relative Humidity: 5% to 95% RH
Certification
FCC
CE
BSMI
VCCI Class B
RCM
KC
iDA
TELEC
JATE
IC
Wi-Fi Certification
CE
FCC
NCC
RCM
iDA
TELEC
KC
ICWireless
IEEE 802.11ac
IEEE 802.11a/b/g/n/ac
Simultaneous tri-band Wi-Fi
5GHz-1: 867Mbps
5GHz-2: 867Mbps
2.4GHz: 400Mbps
IEEE 802.11ac wave 2
MU-MIMO
Wi-Fi Encryption
WEP, WPA/WPA2-Personal, WPA/WPA2-Enterprise, WPA2/WPA3-Personal, WPA3-Personal/Enterprise, Wi-Fi Enhanced Open (OWE)
Wi-Fi MAC address filter
Yes
Maximum MAC filters
64
Seamless roaming
802.11k/v/r standard support
Beamforming
Yes
DFS
Yes
Schedulable Wi-Fi
Yes
Guest Network
Yes
Guest Portal: Yes
Customized page style: Yes
Connection time limit: Yes
Password Rotation: Yes
WPS 2.0 (Wi-Fi Protected Setup 2.0)
Yes
3G/4G Dongle and Tethering
Yes
Maximum connected devices
90
Wi-Fi Point
Yes
Primary Wi-Fi Point
YesNetwork
Internet connection
Dynamic IP, Static IP, PPPoE, PPTP, DS-Lite (AFTR)
3G/4G LTE dongle: Yes
Android tethering: Yes
iPhone tethering: Yes
Note: iPhone tethering only supported your Synology Router running SRM 1.2 or above
Operating mode
Wireless Router
Wireless AP
Port forwarding
Setup via manual management or UPnP
Maximum port forwarding rules: 64
Maximum UPnP rules: 64
Port triggering
Yes
Maximum port triggering rules: 32
Minimum port triggering timeout: 30s
Maximum port triggering timeout: 3600s
DMZ
Yes
IPv6
IPv6 DHCP server / client, DS-Lite, 6in4, 6to4, 6rd, Dual-Stack, DHCPv6-PD, IPv6 Relay, FLETs IPv6
DHCP
Server/client mode, client list, MAC address reservation
Maximum DHCP reservations: 500
LAN/WLAN IGMP snooping
Yes
VPN
VPN server (WebVPN, SSL VPN, SSTP, OpenVPN, L2TP/IPSec, PPTP, Site-to-Site)
VPN client (PPTP, OpenVPN, L2TP/IPSec)
VPN Pass-through (PPTP, IPSec, L2TP)
Policy route, Static route, Network Address Translation (NAT), PPPoE relay
Yes
Maximum IPv4 static routes: 100
Maximum IPv6 static routes: 100
Diagnosis tools
Ping
TracerouteSafe Access
Parental Control
User Profile: 15
Network Profile: 2
Customized Internet schedule: Yes
Time Quota: Yes
IPv4/IPv6 DNS-based web filter:
Schedule
Database
Request to unblock
Customized allow/block list: M
Maximum blocked URLs: 100
Maximum allowed URLs: 100
Pause Internet: Yes
Reward: Yes
Security
Safe Search: Bing, Google, YouTube
Threat Intelligence Database: support in IPv4 and IPv6
Google Safe Browsing: support in IPv4 and IPv6
Database auto update: Threat Intelligence Database, Google Safe Browsing , DNS-based web filterTraffic Control
Internet ban, device speed and priority
Yes
Application layer (L7) quality of service (QoS)
Yes
Maximum device rules: 64
Maximum application rules per device: 32
Traffic Monitor
Yes
Live view: Yes
Historical statistics: Daily, Weekly, Monthly, Annual
Website history: Yes
Application Detection: Yes
Traffic Report
Yes
Country auto update: Yes
Schedulable: Yes
Traffic analysis period: Daily, Weekly, Monthly, Annual
Export formats: .CSV, .HTMLVPN Plus Server
VPN Plus Server
Easily create and manage secure VPN access through a web browser or client. Supports various VPN services - Site-to-Site VPN, WebVPN, SSL VPN, Remote Desktop, SSTP, OpenVPN, L2TP over IPSec, and PPTP
Maximum Client VPN Access License: 10
Site-to-Site VPN: Yes
Maximum Site-to-Site VPN Tunnels: 4
Remote Desktop (RDP + VNC): 3
Connection List: Yes
Log: Yes
Report: YesPackage Center
Cloud Station Server
Sync data from multiple platforms, centralizing it on the router while easily keeping historical versions of important files
Maximum Concurrent File Transfers: 64
Note: Cloud Station ShareSync is not supported
DNS Server
Helps users find and translate domain names into IP addresses
Download Station
Supported download protocols: BT/HTTP/FTP/NZB/eMule
Maximum concurrent download tasks: 50
Maximum concurrent BT download tasks: 20
Media Server (DLNA/UPnP)
Media indexing
DLNA Compliance
PS3/PS4/Xbox 360/Xbox One supported
RADIUS Server
Provides centralized authentication, authorization, and accounting for wireless network accessMobile Apps
DS router (Android/iOS)
First Time Installation
Network overview
Wi-Fi management
Wi-Fi system topology
Safe Access
Traffic Control
Network security (firewall, port forwarding, Internet ban)
Wake on LAN
System Update
VPN Plus (Android/iOS)
Yes
DS cloud (Android/iOS)
Yes
DS get (Android)
Yes
DS file (Android/iOS)
YesManagement
Operating system
Synology Router Manager (SRM)
Free OS upgrade
Yes
Anywhere access to SRM
Synology QuickConnect and Dynamic DNS (DDNS)
Security
Firewall/SPI Firewall, DoS Protection, VPN Pass-through (PPTP, IPSec, L2TP), Auto block, SSL certificate, Security Advisor, two-factor authentication
Wake on LAN (WOL)
Yes
WOL over QuickConnect: Yes
Maximum connected devices: 100
Notification
Email, SMS, push service (via DS router)
SSH
Yes
SNMP
Yes
Configuration backup and restore
Yes
User account management
Yes
Printer server
Maximum printer: 1USB/SD Card File Service
File System
EXT4, FAT, NTFS, HFS+
Access support
File explorer (via LAN only)
Web browsers: Chrome, Firefox, Internet Explorer: 11 onwards, Safari 11 onwards
Mobile device: DS file
Protocol support
Windows file service (CIFS), Mac file service (AFP), FTP/FTPS, WebDAV
Apple Time Machine
Yes
Shared Folder privileges
Yes
Storage hibernation
YesEnvironment and Packaging
Environment
RoHS Compliant
Packaging Content
Main Unit X 1
AC Power Adapter X 1
RJ-45 LAN Cable X 1
Quick Installation Guide X 1Item Dimension (L"xW"xH")
3 x 8 x 7
Weight
2.37 lbs
Warranty Information
2 Years
Features
Package Contents:
Yes
Restriction of Hazardous Substances (RoHS)
Taiwan
- Mesh Router
- AC Power Adapter
- RJ-45 LAN Cable
- Quick Installation Guide
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Country of Origin:
Taiwan
Specs
| Wireless Specifications | |
| ISM Band | Yes |
| Wireless LAN Standard | IEEE 802.11ac |
| ISM Maximum Frequency | 2.40 GHz |
| UNII Band | Yes |
| UNII Maximum Frequency | 5 GHz |
| Total Wireless Transmission Speed | 272.64 MB/s |
| Broadband Transmission Technology | Ethernet |
| Physical Characteristics | |
| Form Factor | Desktop |
| Height | 6.1" |
| Width | 7.8" |
| Depth | 2.6" |
| Warranty | |
| Limited Warranty | 2 Year |
| Interfaces/Ports | |
| Number of Broadband (RJ-45) Ports | 1 |
| USB | Yes |
| Number of Network (RJ-45) Ports | 1 |
| General Information | |
| Brand Name | Synology |
| Manufacturer Website Address | http://www.synology.com |
| Marketing Information | Embrace a whole Wi-Fi coverage in your home and office with the intelligent Synology Mesh Router MR2200ac. Designed with Tri-Band and MU-MIMO technology, MR2200ac makes sure your devices are on the fastest bandwidth dedicated to an optimized performance while keeping multiple devices reliably connected without any delay. Besides, you can enjoy the best Wi-Fi seamless roaming with a single Wi-Fi name among your modular mesh system. Safe Access provides easy-to-use parental management while keeping away any malicious intrusions. Synology MR2200ac is backed by Synology's 2-year limited warranty. Brilliant mesh system ready for smart home To build a mesh system, simply extend an existing RT2600ac Wi-Fi network with an additional MR2200ac or integrate multiple MR2200ac mesh routers . The single Wi-Fi name you set allows you to roam from room to room: you can now stream a movie without the signal dropping and enjoy an extraordinary seamless roaming experience. With its Tri-band technology on one 2.4 GHz band and two 5 GHz bands featuring MU-MIMO support, MR2200ac establishes three separated connections and allows accommodation to extra devices to achieve maximum Wi-Fi speeds and reduces congestion. Smart Connect ensures devices are automatically connected to the most suitable band to reach the optimal connection performance - this greatly reduces any delays and interruption. Guest network provides a secure connection and gives public and temporary visitors only limited permission - this keeps the primary network properly functioning and well protected. You can also set up a welcome portal for everyone connecting to your guest Wi-Fi. Tools including scheduling, auto password change , and MAC address filtering also help prevent unwanted connections. With MR2200ac supporting Wi-Fi Protected Setup (WPS) , simply press one button to allow your Wi-Fi connection to be automatically configured and enjoy a hassle-free setup. Coupled with the attached USB 3.0 port available for extra storage devices, MR2200ac can easily become your private server that provides effortless access and file sharing. Revolutionary software experience Built with security and stability in mind, Synology Router Manager (SRM) allows for friendly management on your device. The familiar, desktop-like interface makes it easy to use , and also comes with capable network tools that users can quickly setup, customize or efficiently troubleshoot issues. Secure and convenient access options are built into SRM. Easily manage your network with multiple access methods remotely with QuickConnect , DDNS , or with DS router on mobile devices. Optional two-step authentication ensures that no one but you can make changes to your network. Redefine parental control In view of limiting Internet usage and protecting children from online dangers, the add on package Safe Access allows you to easily understand the Internet habits of children at different ages Profile management: Set rules by users instead of devices with User Profiles to streamline your management. Your Local Network and Guest Wi-Fi can also be specified in one group. Time management: Internet schedules and Time Quota help you encourage children to use time wisely, and learn to be more organized and productive with limited time online. |
| Product Type | Wireless Router |
| Product Name | Mesh Router |
| Manufacturer | Synology, Inc |
| Manufacturer Part Number | MR2200AC |
| Product Model | MR2200ac |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| VPN Supported | Yes |
| Technical Information | |
| Wi-Fi Generation | Wi-Fi 5 |
