Tripp Lite HDMI over Cat5/Cat6 Active Video Extender / Remote Repeater 1080p 175' (B126-110)
- SKU:
- 18134118
- MPN:
- b126-110
- Availability:
- Out of stock
- Stock Update:
- 01/18/2024 02:31:38 PM PST
- Stock Update:
- 01/18/2024 02:31:38 PM PST
Description
This item is brand-new, factory sealed.

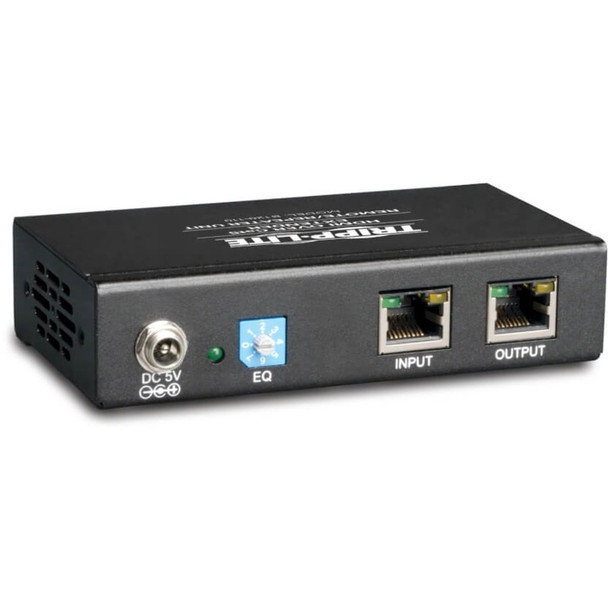

Tripp Lites B126-110 HDMI over Cat5 Active Extender Remote/Repeater Unit (Box-style) Extends and expands a Tripp Lite HDMI over Cat5 installation, allowing multiple monitors to be located at different points in a chain of up to 700 ft.
Extends a 1080i (60Hz) signal up to 175 ft., or a 1080p (60Hz) signal up to 125 ft. from the local transmitter unit to the first remote/repeater unit in the installation.
Extends a 1080i (60Hz) signal up to an additional 175 ft., or a 1080p (60Hz) signal up to an additional 125 ft. from each remote/repeater unit to the next unit in the chain. In a full 4 level daisychain installation, a 1080i (60Hz) signal can be extended up to 700 ft., or a 1080p (60Hz) signal up to 500 ft. from the source to the last remote unit in the chain.

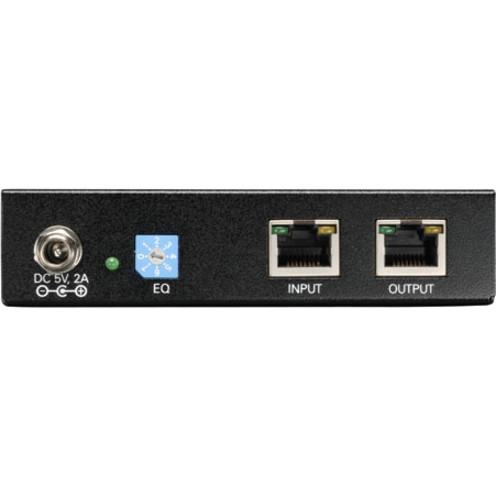

Features a built-in Equalization control for video image adjustment, and Includes mounting hardware that allows the unit to be wall-mounted, rack-mounted or pole-mounted.

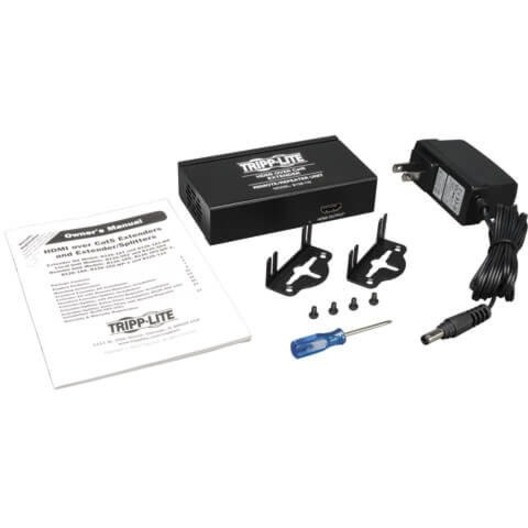

Package Contents:
- Video Extender
- External AC Power Adapter
- Mounting Hardware
- Screwdriver for Equalization Adjustment
- User Manual
Features
- Video Extender
- External AC Power Adapter
- Mounting Hardware
- Screwdriver for Equalization Adjustment
- User Manual
Certifications & Standards:
TAA
TAA Compliant:
Yes
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin:
Taiwan
Specs
| Physical Characteristics | |
| Form Factor |
|
| Product Color | Black |
| Transmitter Depth | 2.50" |
| Color Family | Multicolor |
| Transmitter Height | 1" |
| Transmitter Width | 4.50" |
| Warranty | |
| Limited Warranty | 1 Year |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| HDMI Out | Yes |
| Number of HDMI Outputs | 1 |
| Number of Network (RJ-45) Ports | 2 |
| General Information | |
| Brand Name | Tripp Lite by Eaton |
| Manufacturer Website Address | https://tripplite.eaton.com/ |
| Marketing Information | The B126-110 remote repeater unit can be added to your Tripp Lite B126-Series HDMI over Cat5 installation to increase the extension distance and/or add additional monitors. To achieve maximum distance and resolution, use 24Awg Solid Wire Cat5e/6 cable. (Tripp Lite's N202-Series) Supports 24-bit True Color (8-bits per channel), HDCP, 3D, and both stereo audio and 7.1 channel surround sound audio (7.1 channel surround sound signal will be Multi-Channel or PCM). Installation is simple; just insert the B126-110 repeater into the middle of your installation. In the case of a B126-1A1 extender kit, the transmitter is connected to the HDMI source using a Tripp Lite P568-Series HDMI cable (not included). It is then connected via Cat5e/6 cable to the B126-110, which is connected via Cat5e/6 cable to the B126-1A1 receiver unit. Finally, a monitor is connected to each remote receiver and repeater unit using Tripp Lite P568-Series HDMI cable (not included). The B126-110 unit is TAA GSA Compliant. |
| Product Type | Video Extender Transmitter/Receiver |
| Product Name | B126-110 Video Extender |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer Part Number | B126-110 |
| Product Model | B126-110 |
| Media & Performance | |
| Twisted Pair Cable Standard | Category 5 |
| Media Type Supported | Twisted Pair |
| Technical Information | |
| Maximum Operating Distance | 700 ft |
| Number of Input Devices Supported | 1 |
| Connectivity Technology | Wired |
| Number of Output Devices Supported | 2 |
